For H25 engine

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. To adjust P/S belt tension, loosen tension pulley bolts and turn tension pulley using haxagon wrench.
  2. Adjust belt tension to specification described in above Check  . Then tighten tension pulley bolts to specified torque.

    Tightening torque

    P/S belt tension pulley bolt (a): 25 N.m (2.5 kg-m, 18.5 lb-ft)

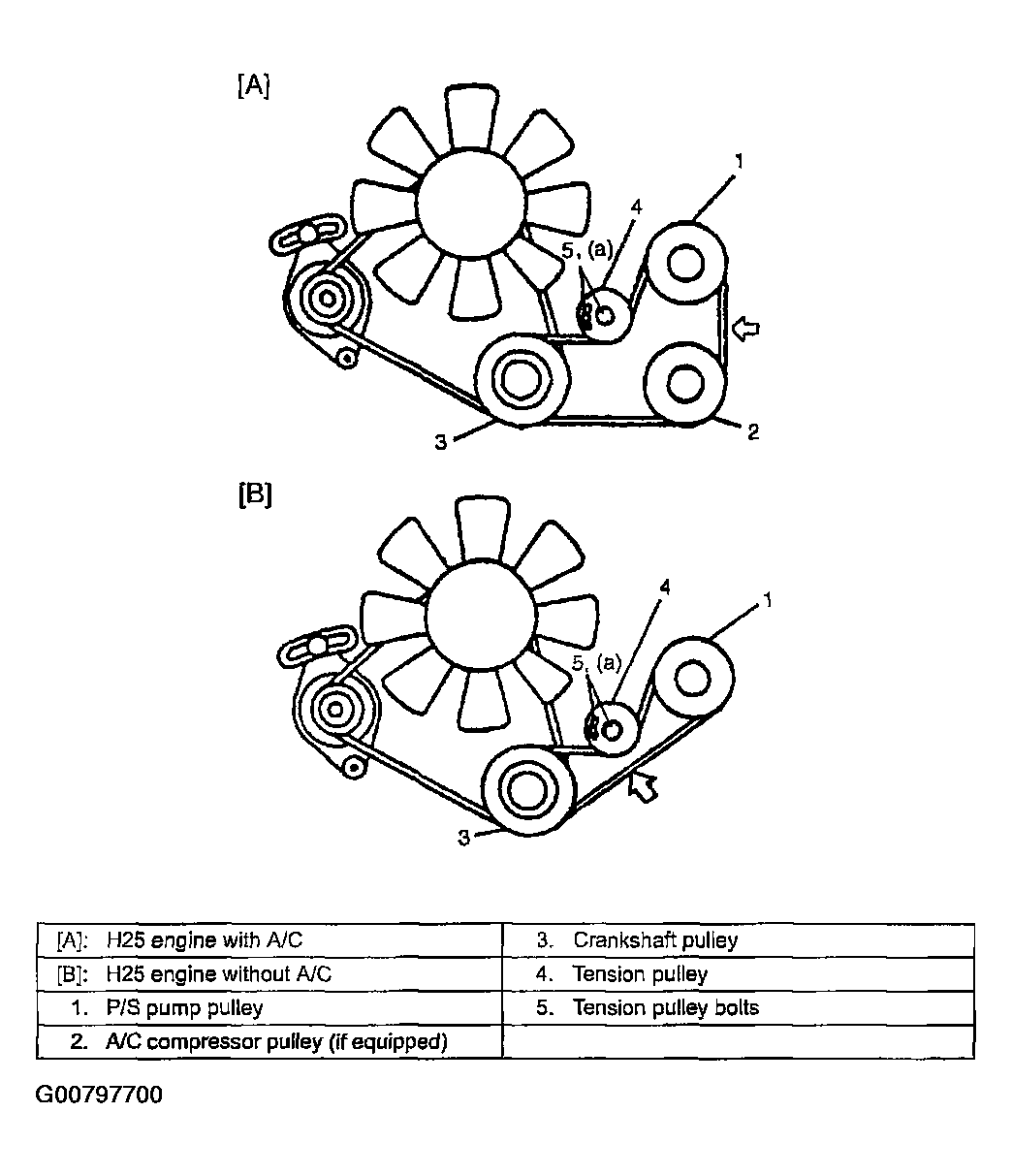

Fig 1: Inspecting Power Steering Pump Drive Belt
G00797700Courtesy of SUZUKI OF AMERICA CORP.
