Clutch Master Cylinder Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

To bleed air from master cylinder (1) itself, tilt it as shown in figure and add fluid into it.
NOTE: After bleeding air from master cylinder (1), plug pipe hole in it to prevent fluid from spilling out of it till pipe is connected.

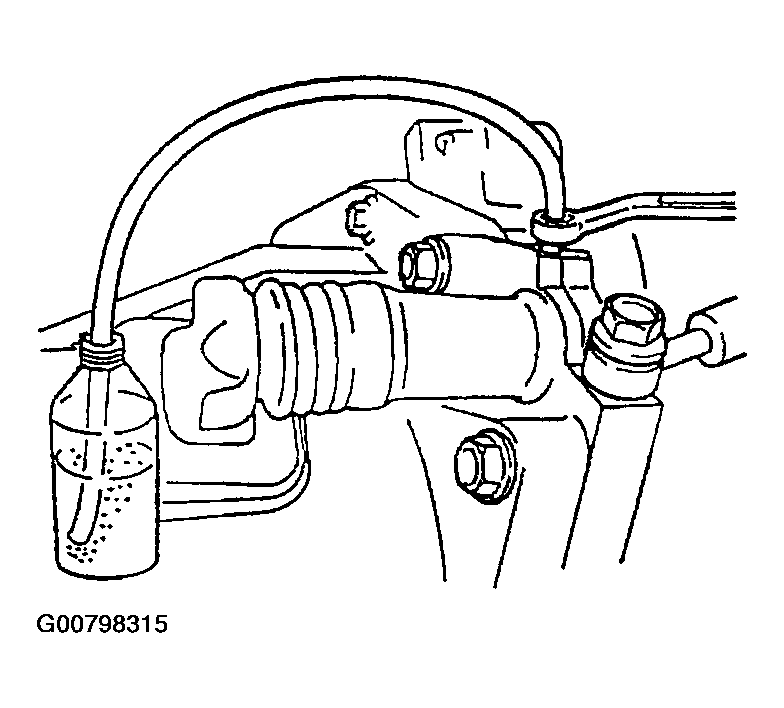

Fig 1: Bleeding Air From Master Cylinder
Courtesy of SUZUKI OF AMERICA CORP.
Install master cylinder assembly and new gasket to body, attaching bolt (1), nuts (2) and push rod clevis pin (3).
NOTE: Do not reuse gasket.
Torque attaching bolt (1) and nut (2) to specification.
Connect fluid pipe and torque flare nut (4) to specification.
Tightening torque

Clutch master cylinder mounting bolt and nut (a): 13 N.m (1.3 kg-m, 9.5 lb-ft)

Clutch fluid pipe flare nut (b): 16 N.m (1.6 kg-m, 11.5 lb-ft)
Apply grease to clevis pin (3) and install it.

Fig 2: Installing Master Cylinder Assembly And Gasket To Body
Courtesy of SUZUKI OF AMERICA CORP.

"A": Grease 99000-25010
Fill reservoir with specified brake fluid and check fluid leakage.

Fig 3: Filling Reservoir With Specified Brake Fluid And Checking Fluid Leakage
Courtesy of SUZUKI OF AMERICA CORP.
After installation, bleed air from system and check clutch pedal free travel. Refer to BLEEDING BRAKE SYSTEM for air bleeding procedure.
