Clutch Master Cylinder Disassembly and Assembly: Disassembly
WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

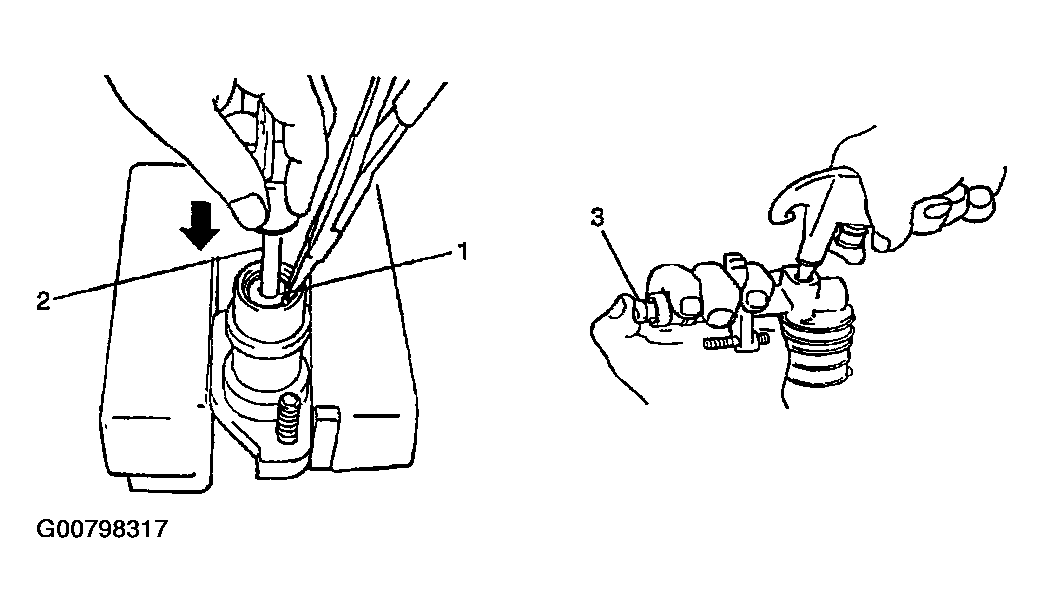

- Remove boot and then circlip (1) with piston (3) pushed in.
- Remove push rod (2) and blow compressed air gradually into hole for pipe connection to remove piston assembly, using care to prevent it from jumping out.
Courtesy of SUZUKI OF AMERICA CORP.
