Clutch Fluid Pipe and Hose Removal and Installation: Installation
WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
Reverse removal sequence noting the following points.

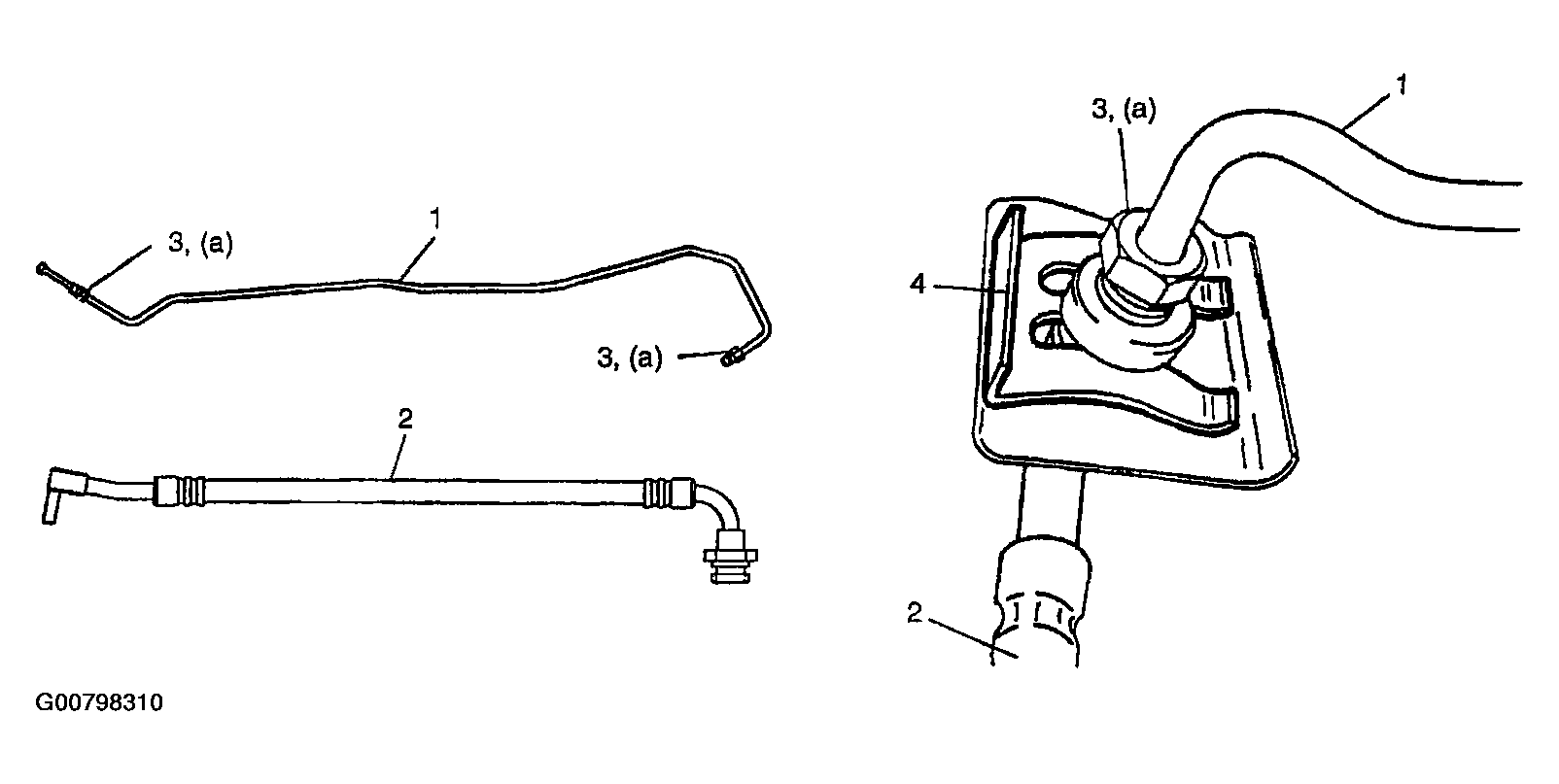

- Tighten flare nuts (3) to specified torque.
Tightening torque
Clutch fluid pipe flare nut (a): 16 N.m (1.6 kg-m, 11.5 lb-ft)
NOTE:
- For air bleeding of master cylinder alone, it must be removed from vehicle. (For procedures of removal and installation of master cylinder assembly and air bleeding, refer to Clutch Master Cylinder Removal and Installation .
- Do not allow fluid to get on painted surface.
- Do not allow pipe (1) and hose (2) to contact hard against vehicle or other parts.
- Install each clamp securely.
- Install E-ring (4) securely as shown.
- After installation, check clutch pedal free travel and bleed air from system.
- Check fluid leakage.
- Add fluid close to MAX level of reservoir.
