Clutch Cover, Clutch Disc and Flywheel Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

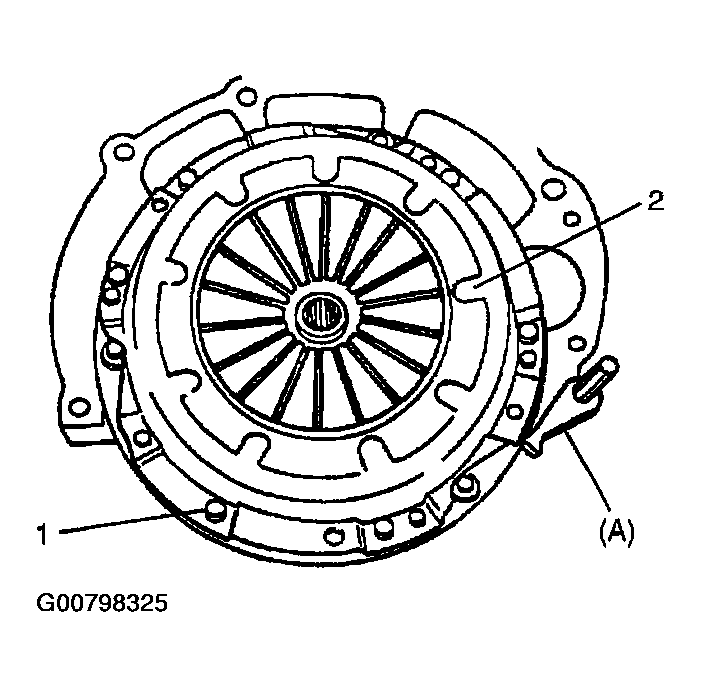

Hold flywheel stationary with special tool (A) and remove clutch cover bolts (1), clutch cover (2) and clutch disc.
Special tool

(A): 09924-17810

Fig 1: Removing Clutch Cover Bolts And Clutch Disc
Courtesy of SUZUKI OF AMERICA CORP.

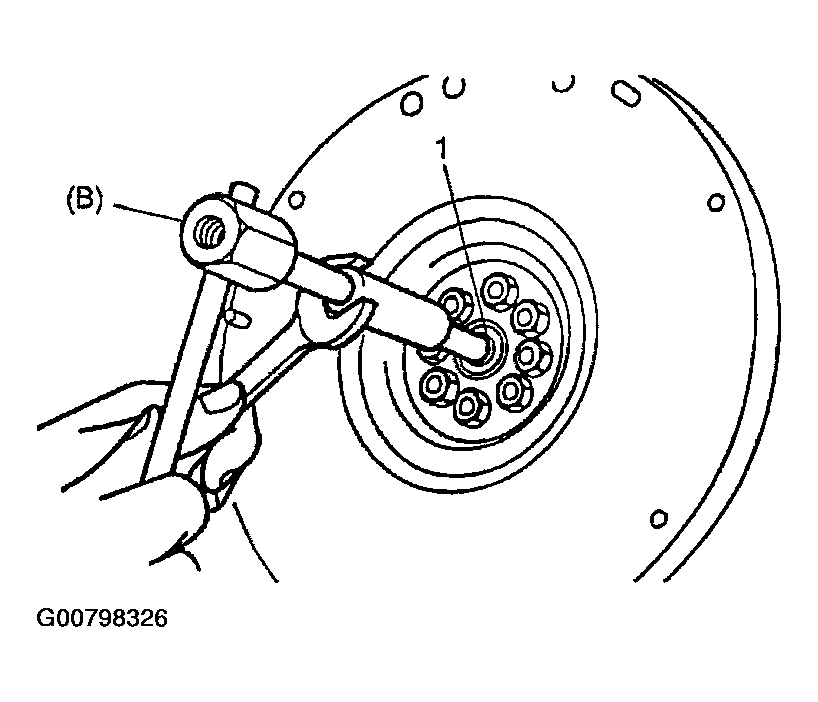

Pull out input shaft bearing (1) by using special tool (B) and wrench.
Special tool

(B): 09923-73210

Fig 2: Removing Input Shaft Bearing By Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Remove release bearing and release fork.
