Section 177 (Clutch)
>>
Components Location
>>
Clutch Fluid Pipe and Hose Location
Clutch Fluid Pipe and Hose Location
WARNING:
This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

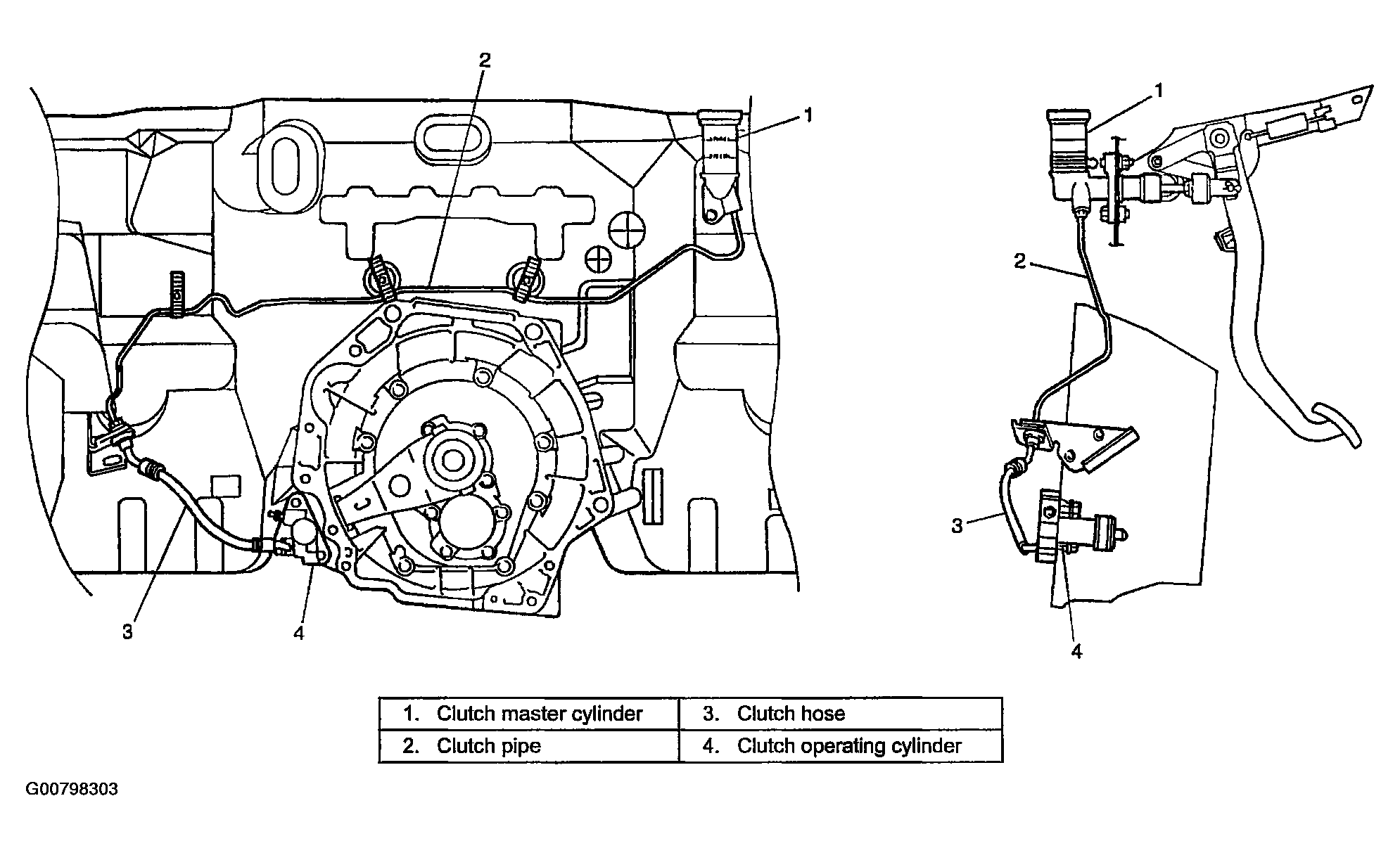

Fig 1: Identifying Clutch Fluid Pipe And Hose Location
Courtesy of SUZUKI OF AMERICA CORP.
