Section 176 (Manual Transmission)
>>
Repair Instructions
>>
Manual Transmission Gear and Shaft Components
Manual Transmission Gear and Shaft Components
WARNING:
This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

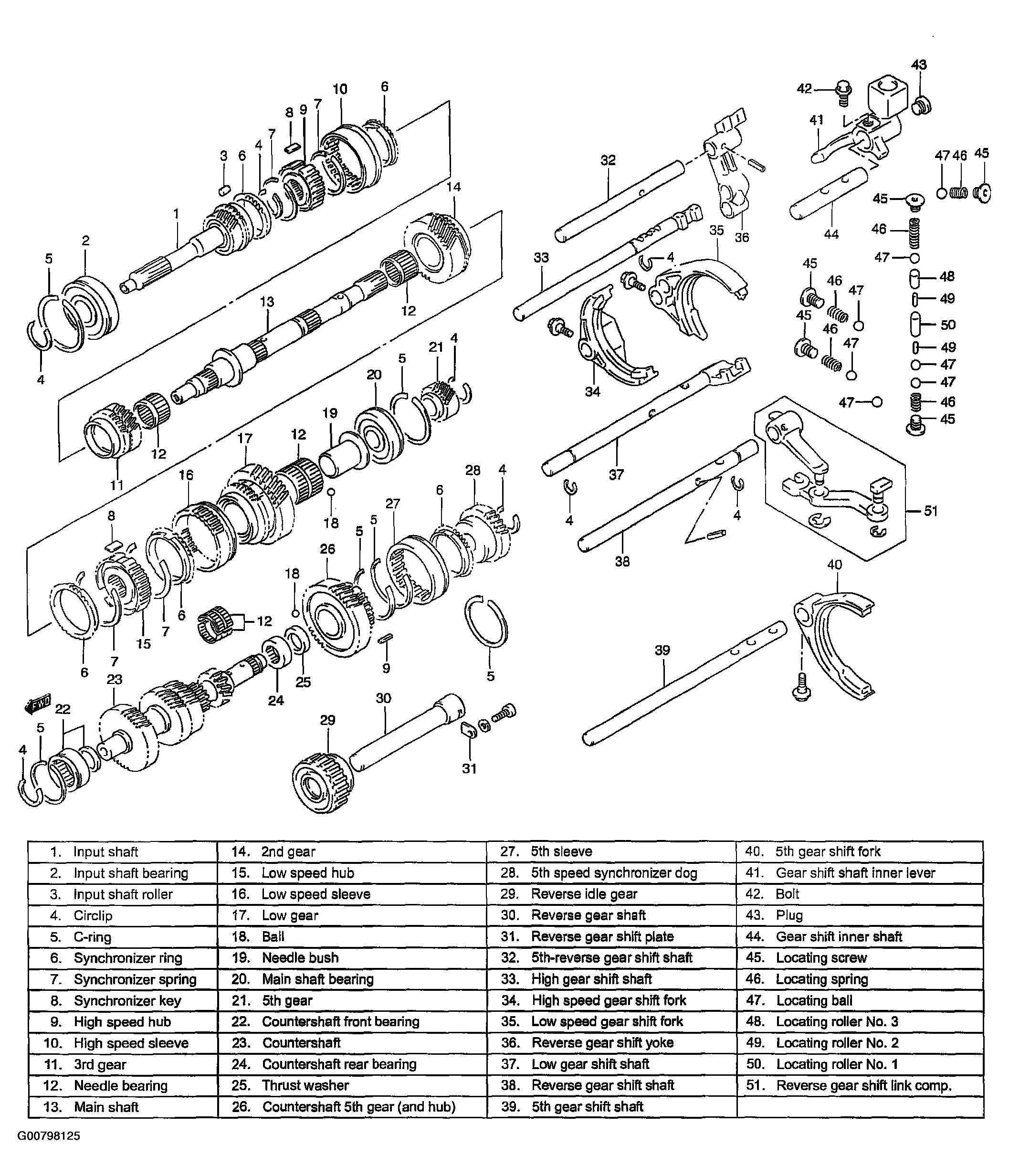

Fig 1: Disassembled View Of Manual Transmission Gear And Shaft Components
Courtesy of SUZUKI OF AMERICA CORP.
