In engine room

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable of battery.

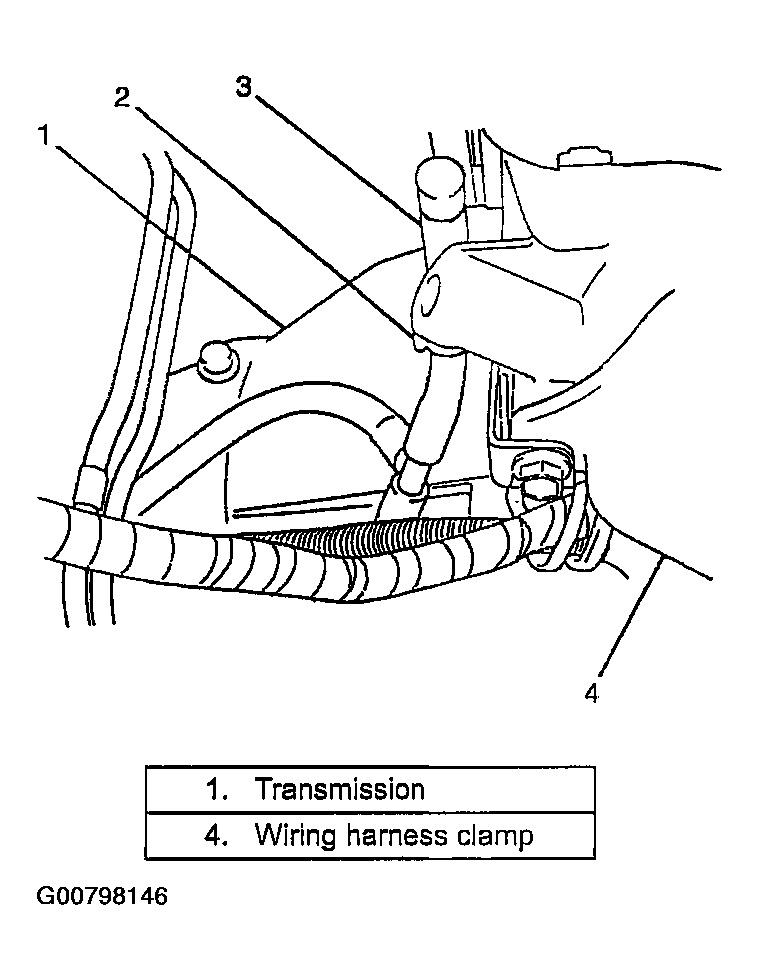

  2. Remove breather hose (3) from clamp (2) at the rear end of cylinder head.
    Fig 1: Dismounting Manual Transmission Assembly Components
    G00798146Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove starting motor fixing bolts (2) and nut and then remove starter (1).
    Fig 2: Removing Starter
    G00798147Courtesy of SUZUKI OF AMERICA CORP.

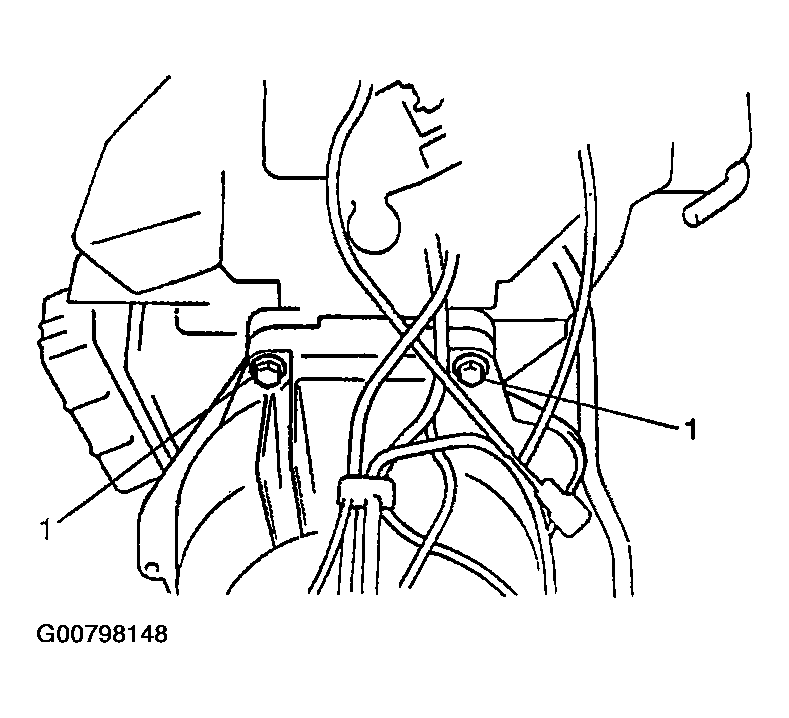

  4. Remove transmission fastening bolts (1).
    Fig 3: Removing Transmission Fastening Bolts
    G00798148Courtesy of SUZUKI OF AMERICA CORP.
