Input Shaft Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Remove circlip of input shaft (1) and pull out bearing (2) with bearing puller (3) and press.

CAUTION: Sealed bearing must not be washed. Replace it with new one when required.

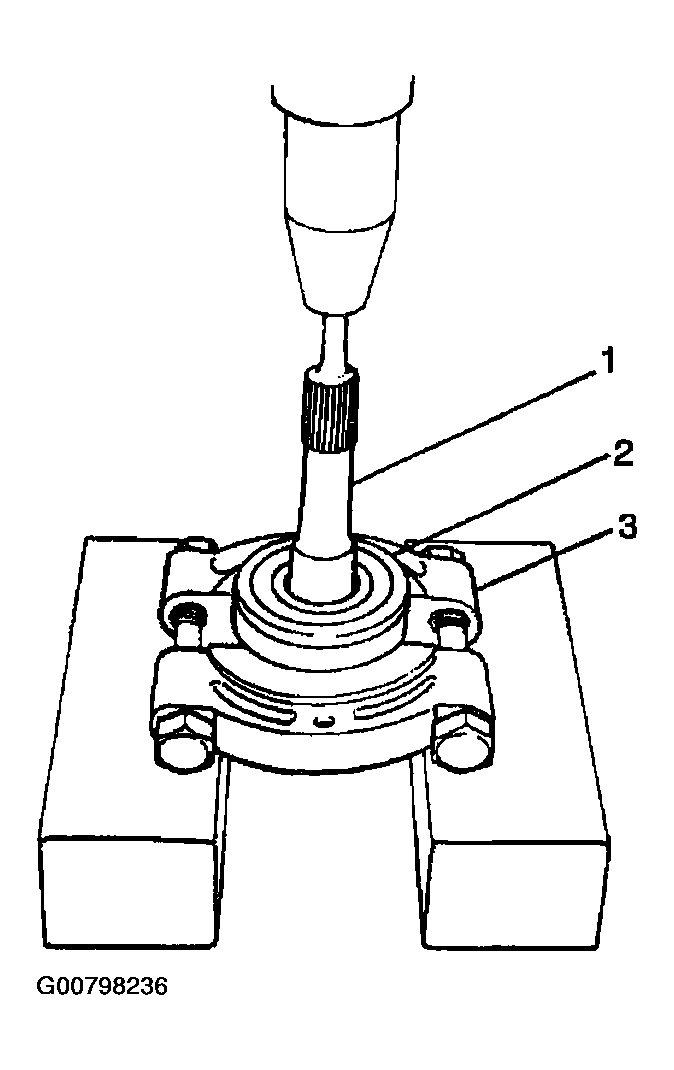

Fig 1: Disassembling Input Shaft
G00798236Courtesy of SUZUKI OF AMERICA CORP.
