Normal Mode for J20 Engine

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

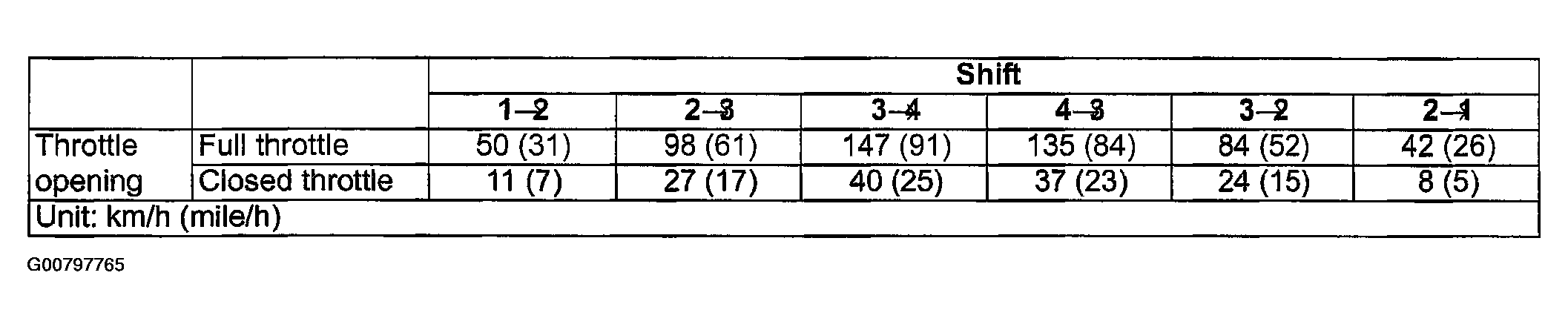

Fig 1: Shift Pattern (Normal Mode For J20 Engine)
G00797765Courtesy of SUZUKI OF AMERICA CORP.
