Normal Mode for H25 Engine

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

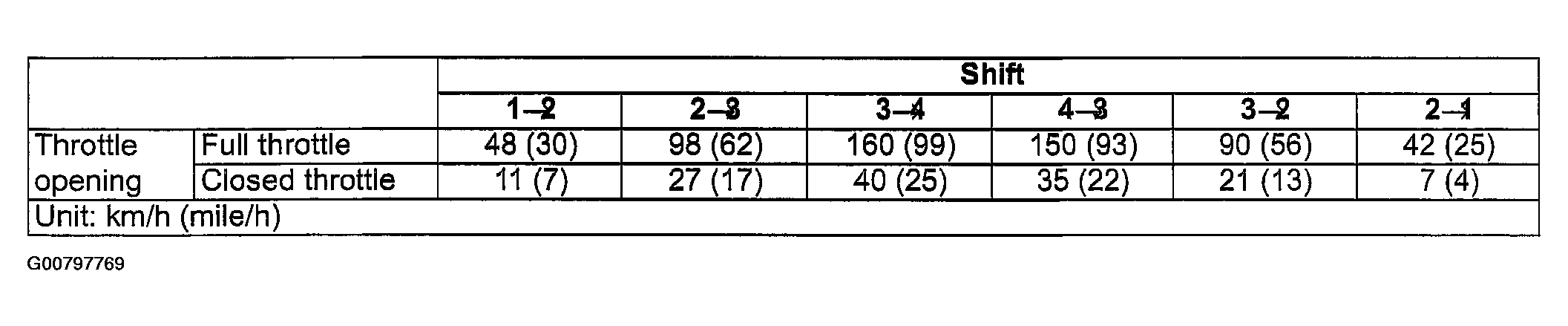

Fig 1: Shift Pattern (Normal Mode For H25 Engine)
G00797769Courtesy of SUZUKI OF AMERICA CORP.
