Gear Shift Diagram [A] and TCC Lock-Up Diagram [B]

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

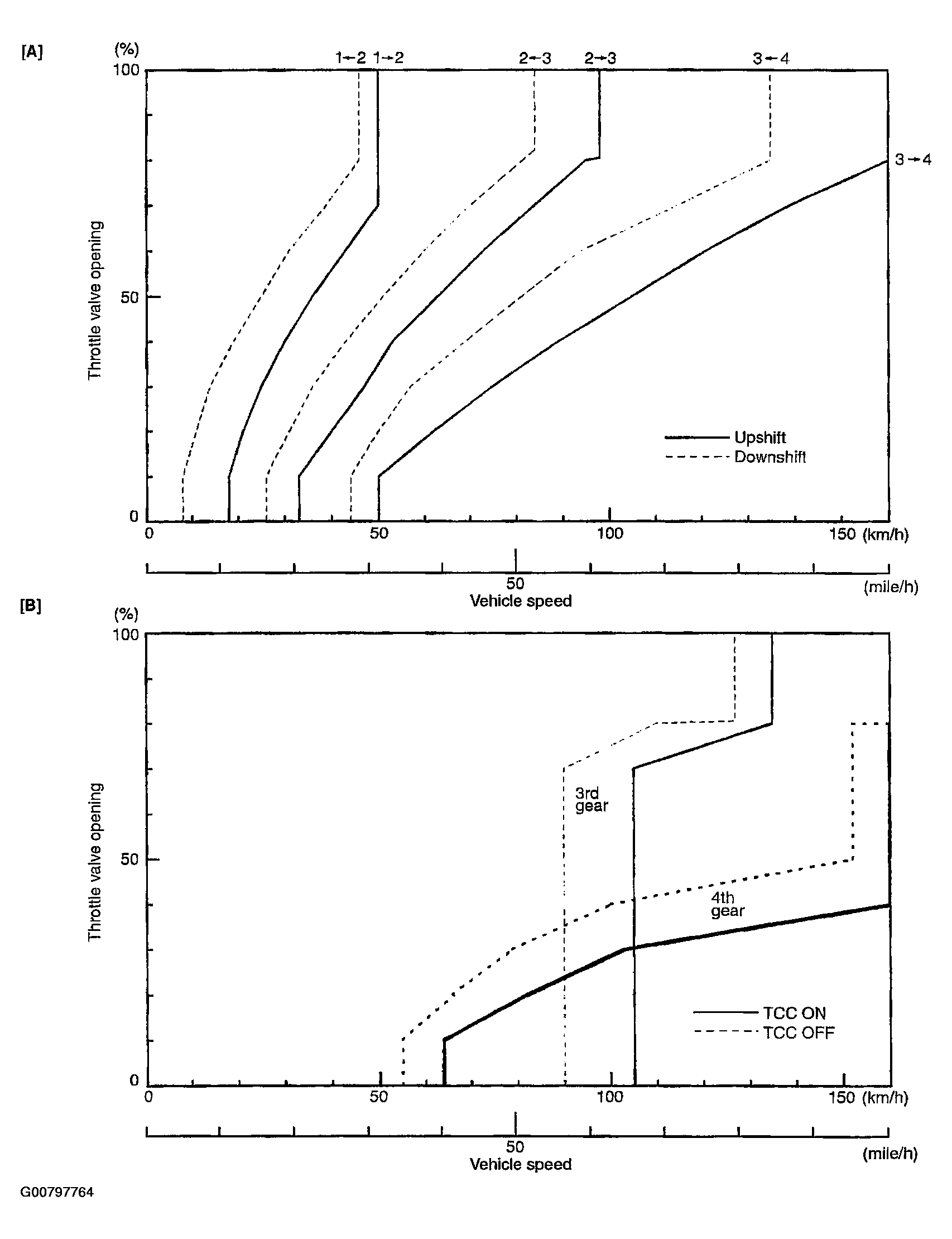

Fig 1: Gear Shift Diagram [A] And TCC Lock-Up Diagram [B]

Courtesy of SUZUKI OF AMERICA CORP.

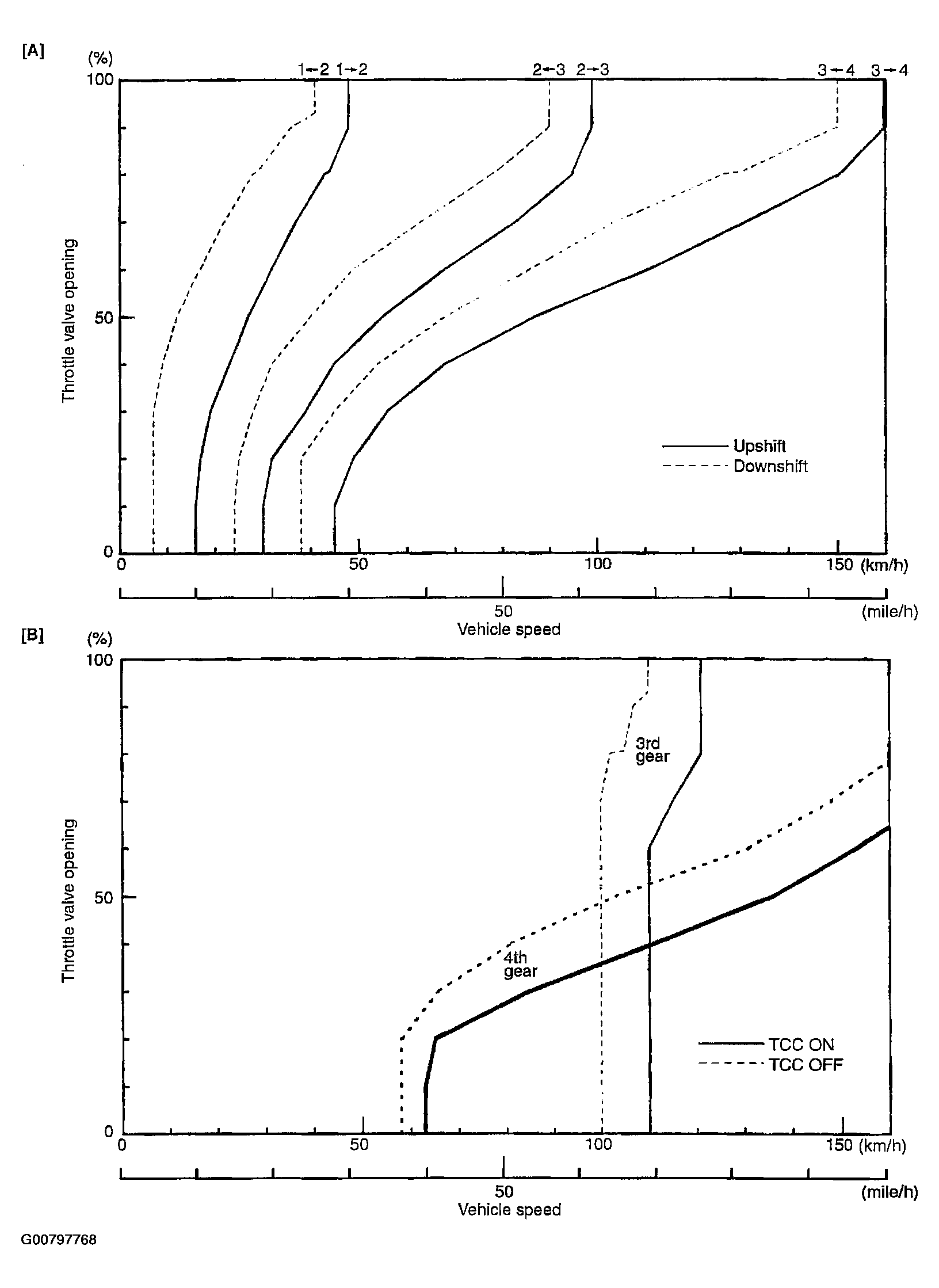

Fig 1: Gear Shift Diagram [A] And TCC Lock-Up Diagram [B]

Courtesy of SUZUKI OF AMERICA CORP.

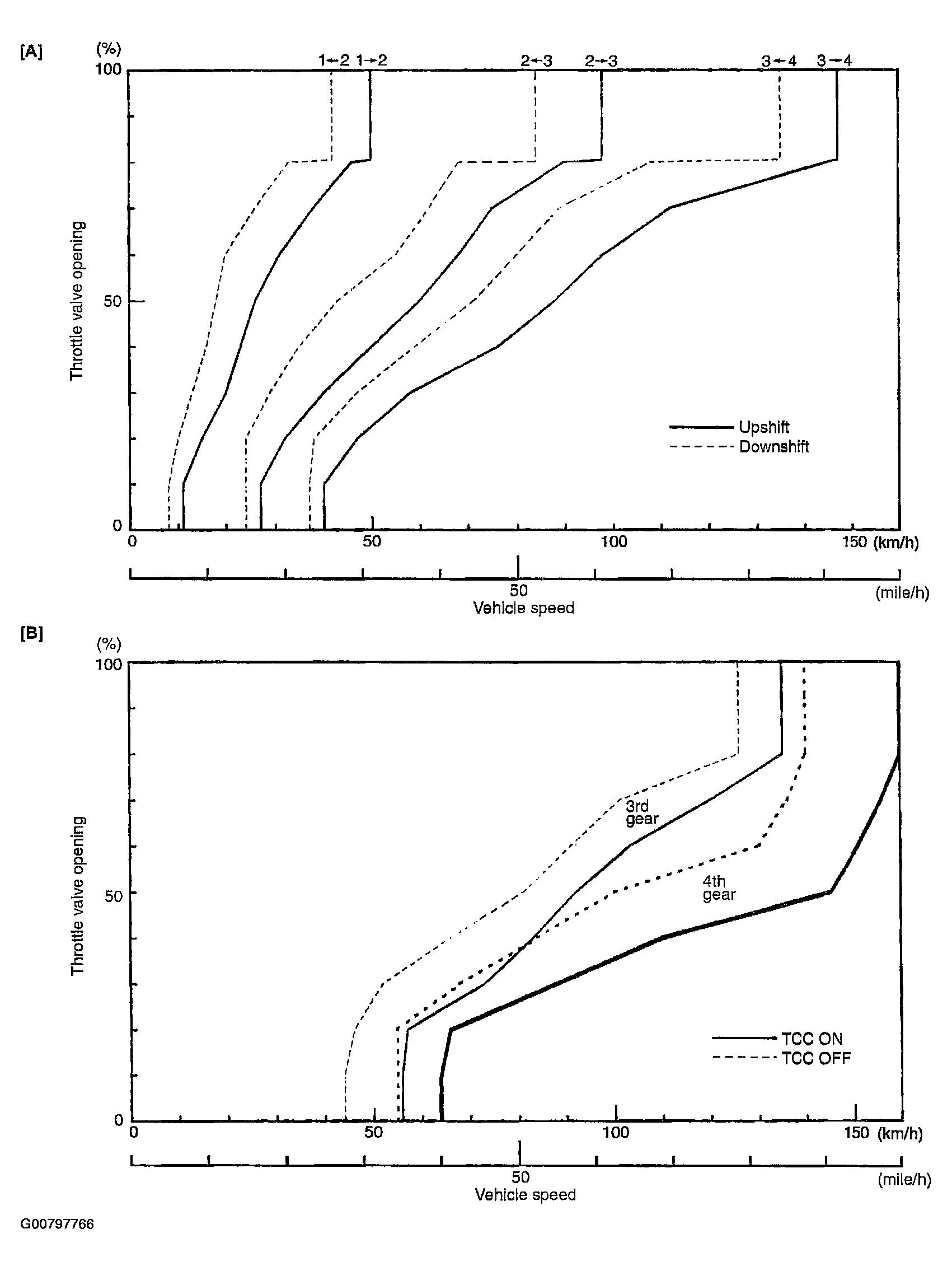

Fig 1: Gear Shift Diagram [A] And TCC Lock-Up Diagram [B]

Courtesy of SUZUKI OF AMERICA CORP.

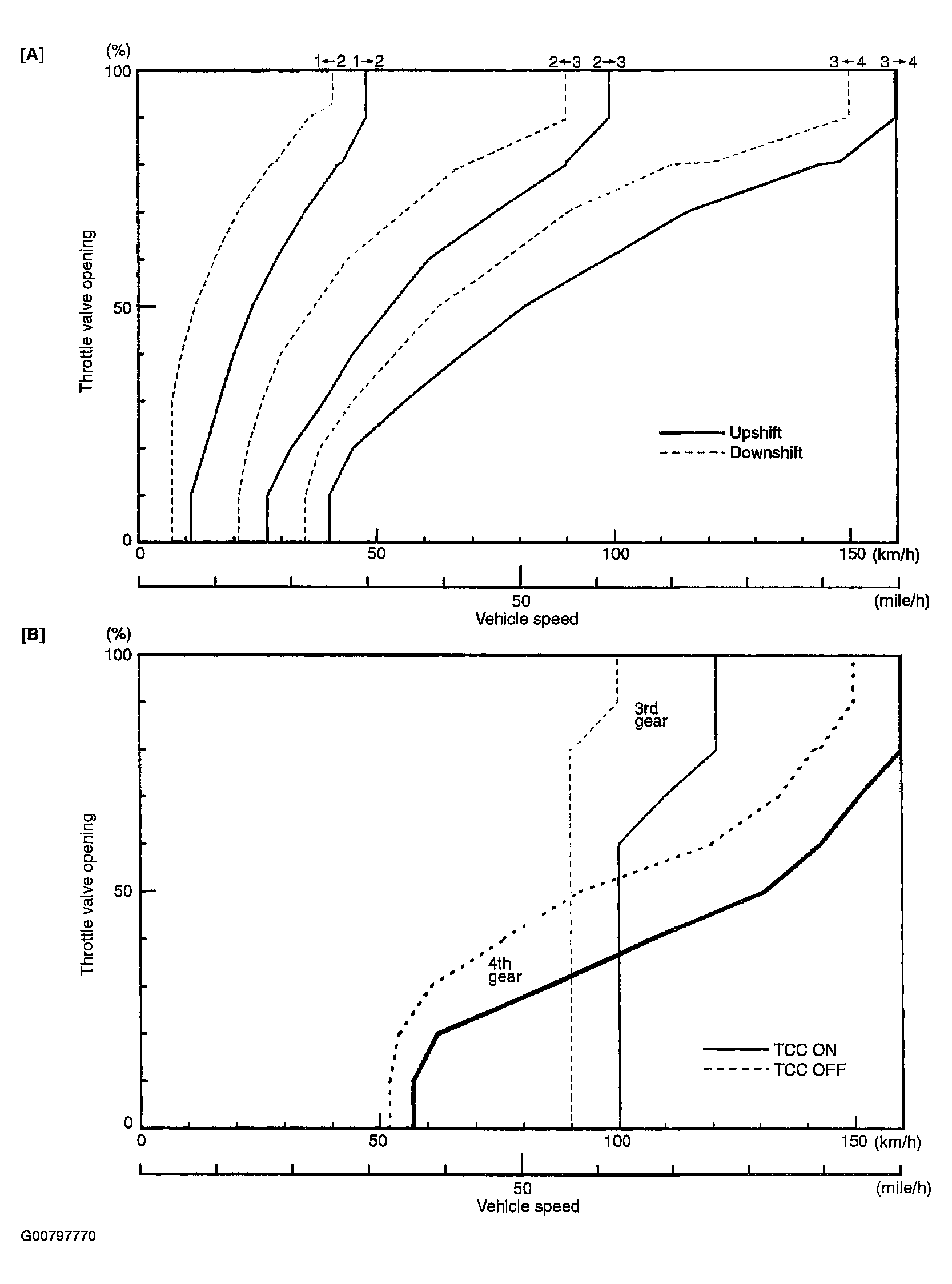

Fig 1: Gear Shift Diagram [A] And TCC Lock-Up Diagram [B]

Courtesy of SUZUKI OF AMERICA CORP.
