Valve Body Assembly Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Remove detent spring (2), plate (1) and manual valve (3).

Fig 1: Removing Detent Spring, Plate And Manual Valve
Courtesy of SUZUKI OF AMERICA CORP.

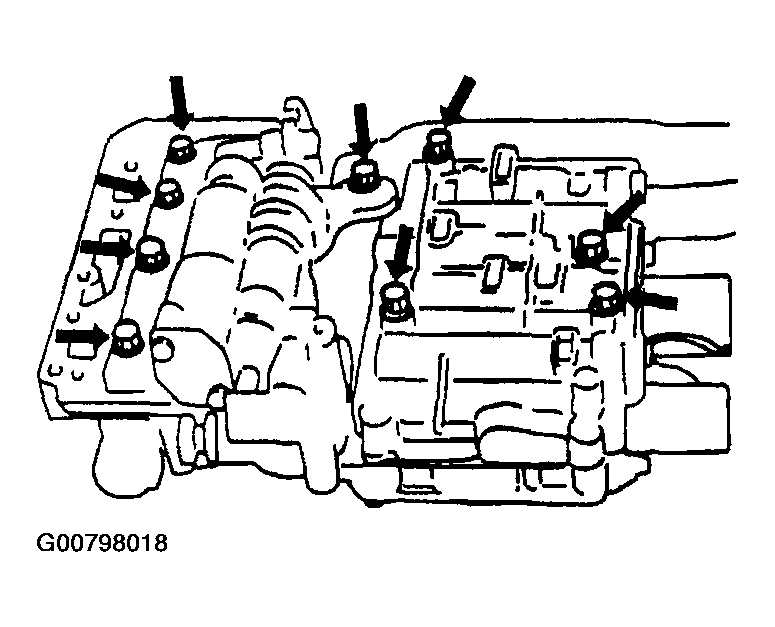

Remove bolts from upper valve body side.

Fig 2: Removing Bolts From Upper Valve Body Side
Courtesy of SUZUKI OF AMERICA CORP.
Remove bolts from lower valve body side.

Fig 3: Removing Bolts From Lower Valve Body Side
Courtesy of SUZUKI OF AMERICA CORP.
Separate upper valve body (2) and lower valve body (1) while pressing separator plate and valve body gasket against lower valve body (1) to prevent balls, spring and others from coming out of valve body.

Fig 4: Separating Upper Valve Body And Lower Valve Body
Courtesy of SUZUKI OF AMERICA CORP.
Confirm that there are valve, balls and plate as shown in the figures.

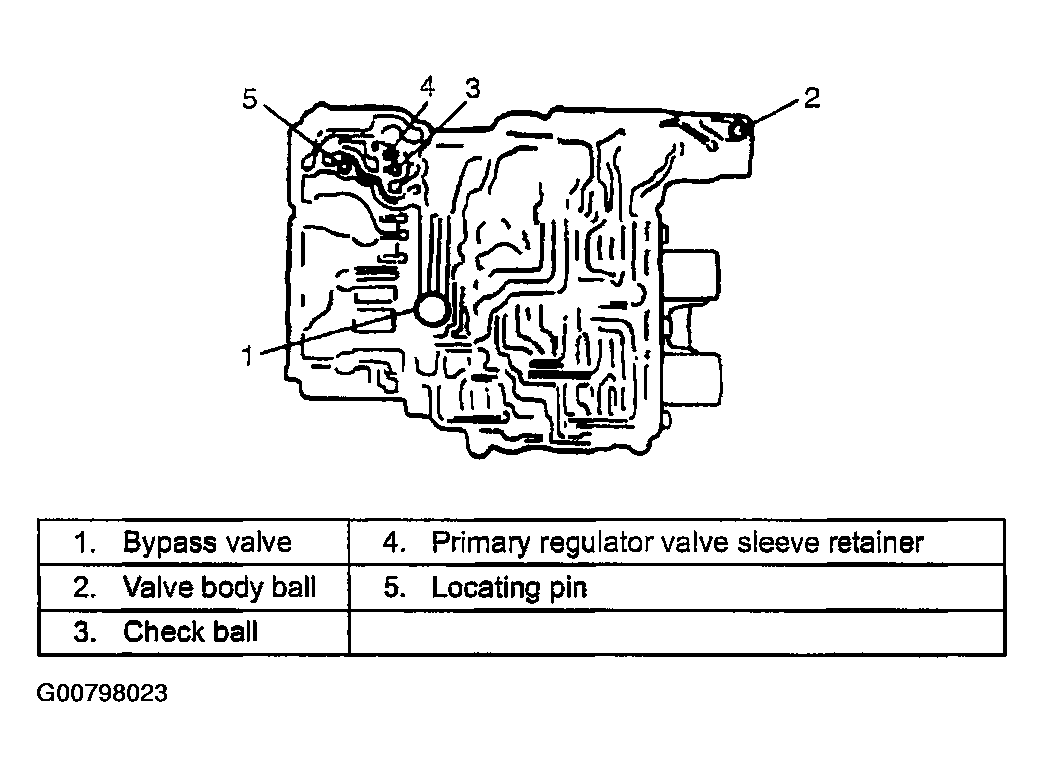

- Front upper valve body assembly.

  Fig 5: Identifying Front Upper Valve Body Assembly
  Courtesy of SUZUKI OF AMERICA CORP.
- Rear upper valve body assembly.

  Fig 6: Identifying Rear Upper Valve Body Assembly
  Courtesy of SUZUKI OF AMERICA CORP.
- Lower valve body assembly.

  Fig 7: Identifying Lower Valve Body Assembly
  Courtesy of SUZUKI OF AMERICA CORP.
