Solenoid Valves (Shift Solenoid Valves and TCC Solenoid Valve) Removal and Installation: Removal
WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Pull out dipstick and lift up vehicle.

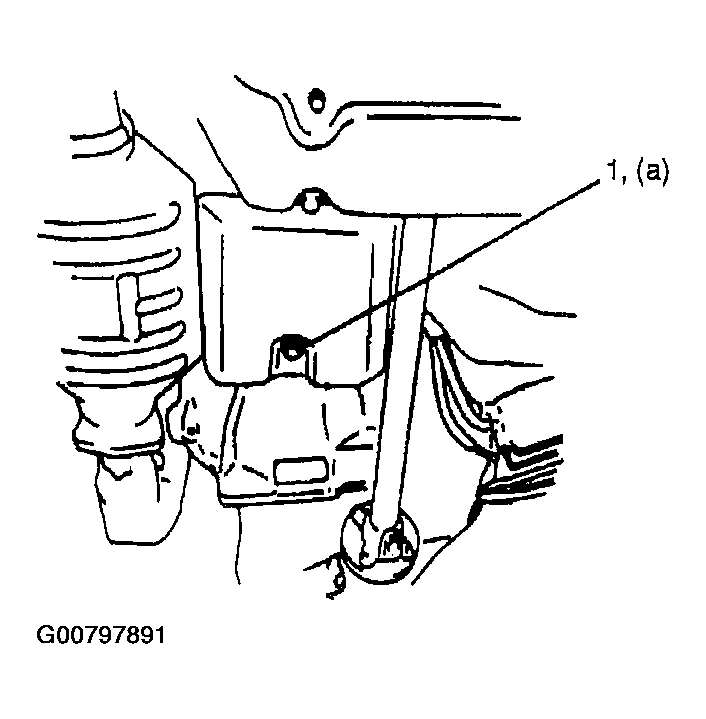

- With engine cooled, remove drain plug (1) from oil pan and drain A/T fluid.
- Install drain plug with gasket.
Tightening torque
A/T fluid drain plug (a): 23 N.m (2.3 kg-m, 17.0 lb-ft)
- Remove exhaust pipe bracket and disconnect front propeller shaft from front differential (if equipped).
- Remove oil pan bolts.
- Remove oil pan.
- Remove oil tubes.
- Remove solenoid valve No. 1 (shift solenoid valve-A (#1) and -B (#2)) or solenoid valve No. 2 (TCC solenoid valve).
