Solenoid Valves (Shift Solenoid Valves and TCC Solenoid Valve) Removal and Installation: Installation
WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
Reverse removal procedure to install solenoid valves and noting the following points.
- For details of solenoid valve installation, refer to "LOWER VALVE BODY DISASSEMBLY AND ASSEMBLY: ".

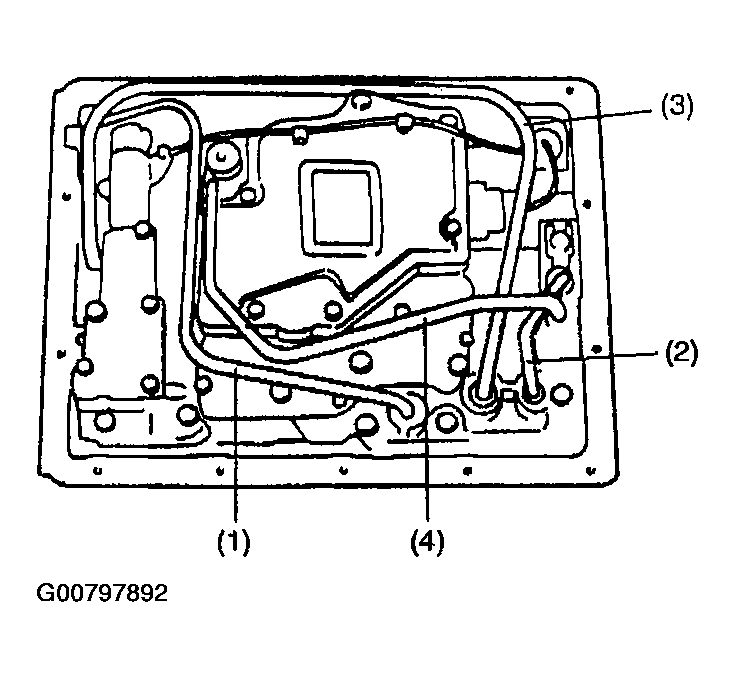

- Install oil tubes in such order ((1) - (4)) as shown in the figure.
- For details of oil pan installation, refer to "AUTOMATIC TRANSMISSION UNIT ASSEMBLY: ". Use new oil pan gasket.
- Tighten universal joint flange bolts and nuts and exhaust pipe bracket bolts to specified torque.
- Fill A/T fluid and check fluid level according to procedure described in A/T Fluid Level Check .
- Check for fluid leakage after warning up A/T.
