Solenoid Valves (Shift Solenoid Valves and TCC Solenoid Valve) On-Vehicle Inspection

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

With couplers of PCM disconnected and using service wire as shown, check each solenoid valve for clicking sound.

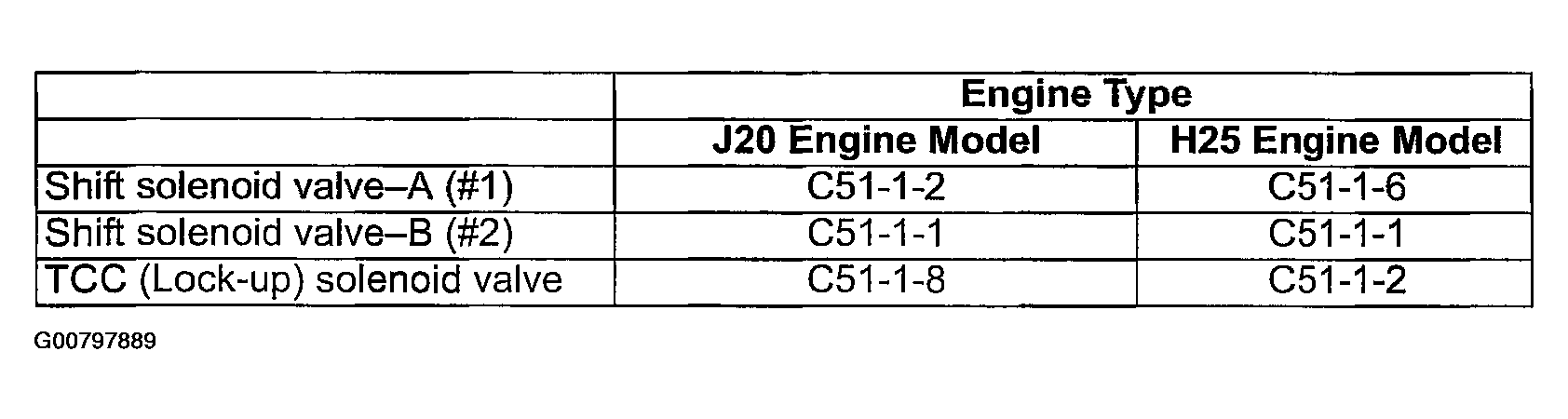

Fig 1: Solenoid Valves On-Vehicle Inspection Chart

Courtesy of SUZUKI OF AMERICA CORP.

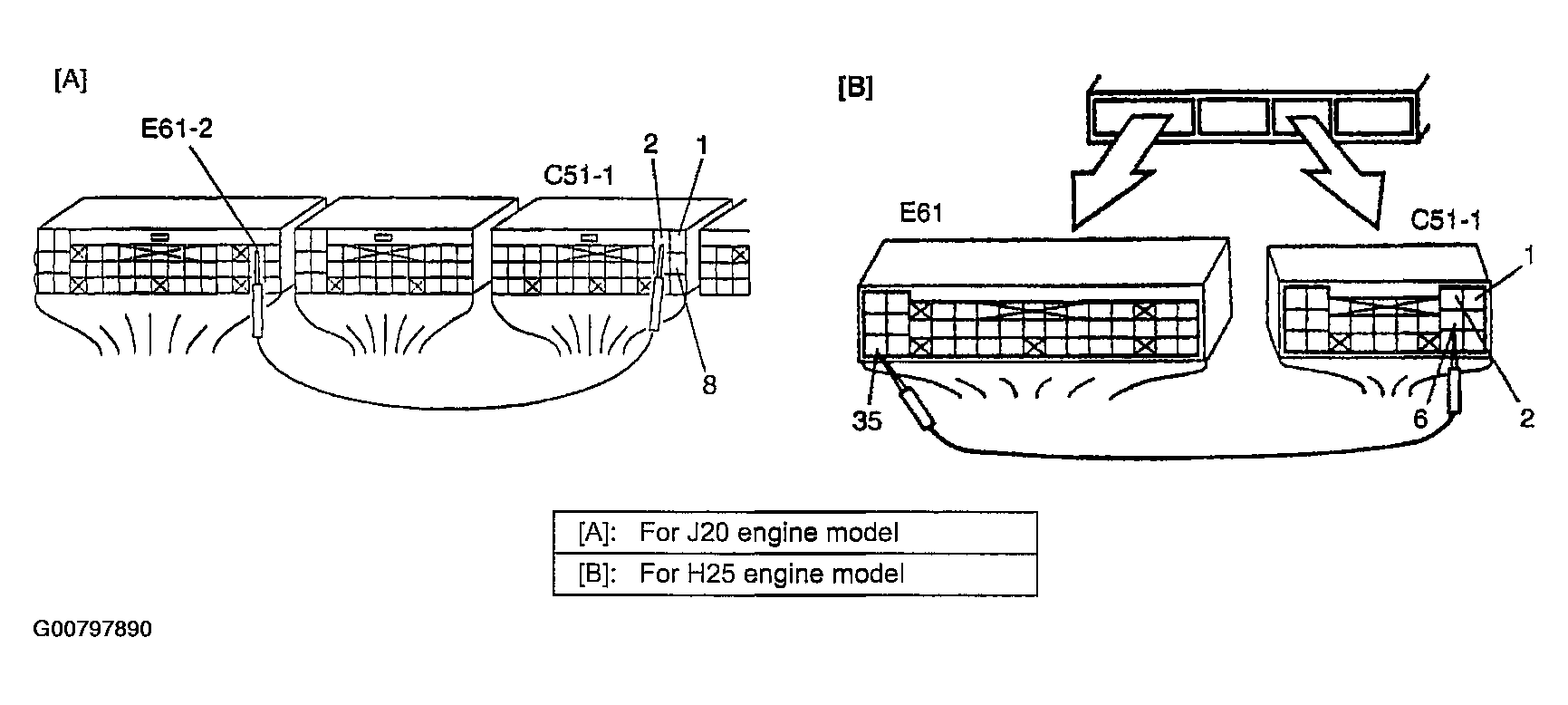

Fig 2: Checking Solenoid Valve For Clicking Sound

Courtesy of SUZUKI OF AMERICA CORP.
