Planetary Gears and Output Shaft Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

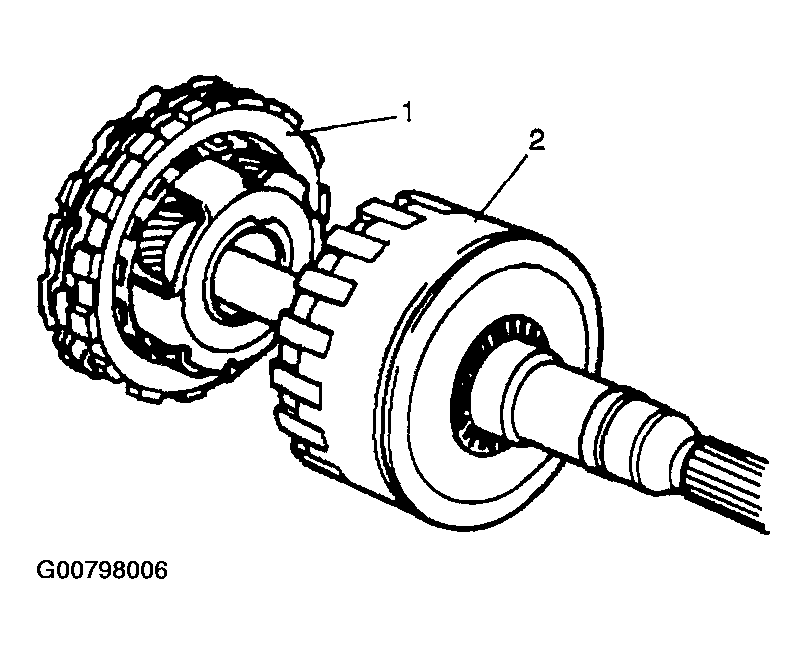

Remove front planetary gear assembly (1) from output shaft assembly (2).

Fig 1: Removing Front Planetary Gear Assembly From Output Shaft Assembly
Courtesy of SUZUKI OF AMERICA CORP.

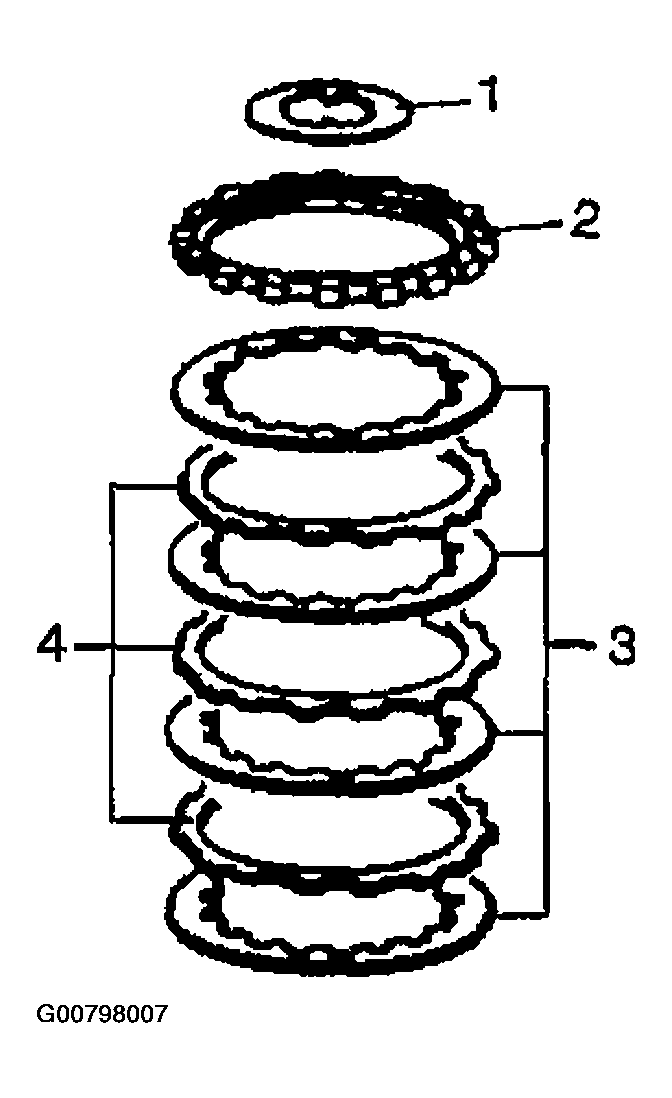

Remove rear planetary thrust washer (1), reverse brake backing plate (2), reverse brake disc (3) and reverse brake plate (4) from front planetary gear assembly.

Fig 2: Removing Rear Planetary Thrust Washer, Reverse Brake Backing Plate
Courtesy of SUZUKI OF AMERICA CORP.

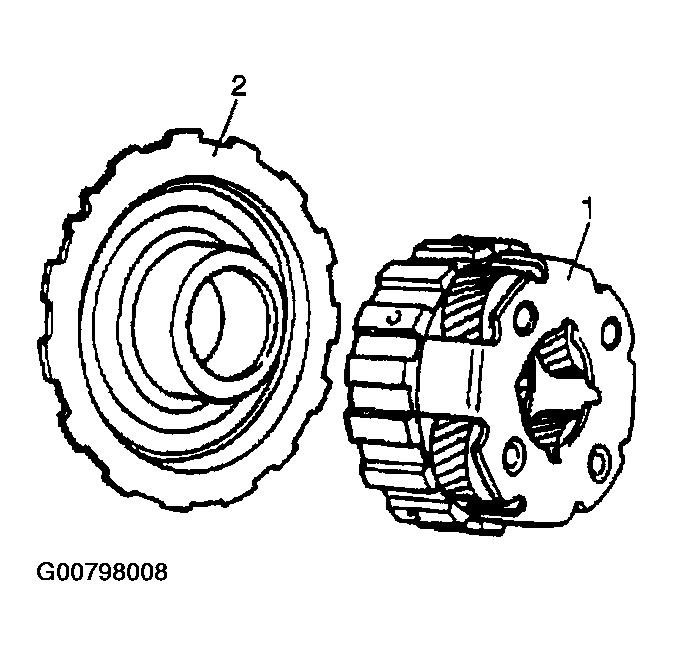

Remove reverse brake reaction plate (2) from front planetary gear (1).

Fig 3: Removing Reverse Brake Reaction Plate From Front Planetary Gear
Courtesy of SUZUKI OF AMERICA CORP.
After removing retaining ring (1), remove one-way clutch (2) and one-way clutch rear thrust washer (3).

Fig 4: Removing Retaining Ring, One-Way Clutch And One-Way Clutch Rear Thrust Washer
Courtesy of SUZUKI OF AMERICA CORP.
After removing retaining ring (1), remove front planetary ring gear (2), thrust bearing and rear planetary race.

Fig 5: Removing Retaining Ring, Remove Front Planetary Ring Gear And Thrust Bearing
Courtesy of SUZUKI OF AMERICA CORP.
Remove rear planetary thrust washer (1), rear planetary gear (2) and rear planetary sun gear (3).

Fig 6: Removing Rear Planetary Thrust Washer, Rear Planetary Gear And Rear Planetary Sun Gear
Courtesy of SUZUKI OF AMERICA CORP.
After removing retaining ring (2) from inner shaft (1), remove rear planetary ring gear (3) and thrust bearing assembly.

Fig 7: Removing Retaining Ring From Inner Shaft And Rear Planetary Ring Gear
Courtesy of SUZUKI OF AMERICA CORP.
