Oil Pump Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove 6 bolts, oil pump cover (1), drive gear and driven gear in that order.

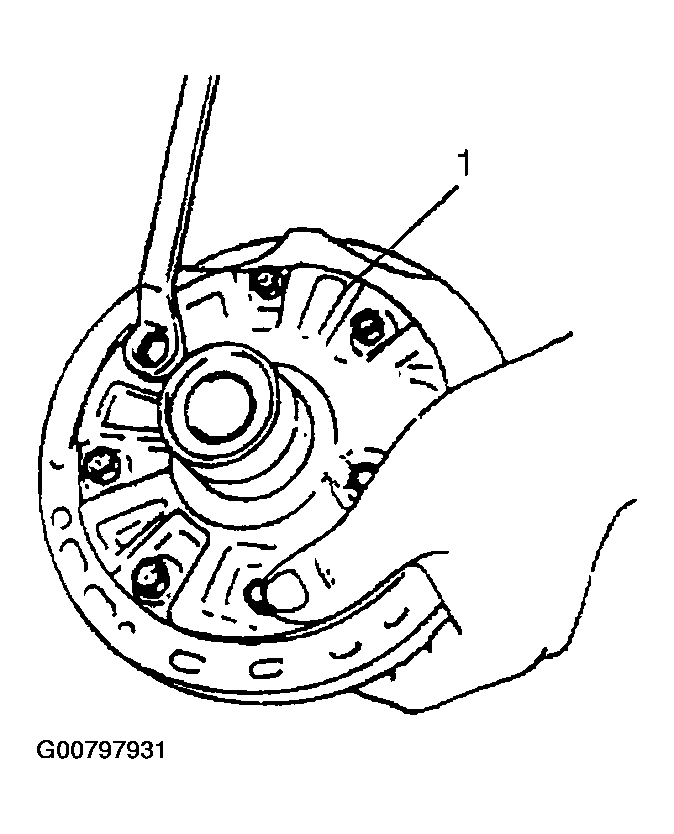

    Fig 1: Removing Bolts And Oil Pump Cover
    G00797931Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove oil pump cover O-ring.
