Manual Selector Assembly Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: New selector assembly is supplied with held interlock cam at interlock cable connecting position with pin (1). Remove this pin (1) after connecting interlock cable to interlock cam and tightening cable nut.

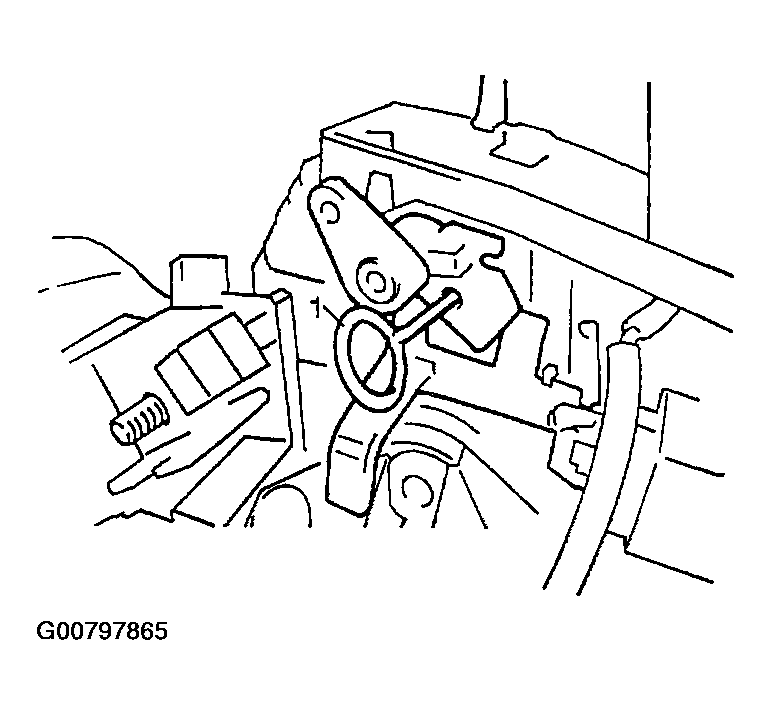

Fig 1: Identifying Interlock Cam Pin

Courtesy of SUZUKI OF AMERICA CORP.

Reverse removal procedure to install noting the followings.

Connect interlock cable end to cam referring to "KEY INTERLOCK CABLE REMOVAL AND INSTALLATION: ".
Upon completion of installation, confirm that brake (key) interlock system operates properly.
