Front Upper Valve Body Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Assemble each component by reversing disassembly procedure and noting the following points.

Coil outer diameter and free length of each valve spring should be as listed. Be sure to use each one of correct size.
Coil outer diameter and free length of each valve spring

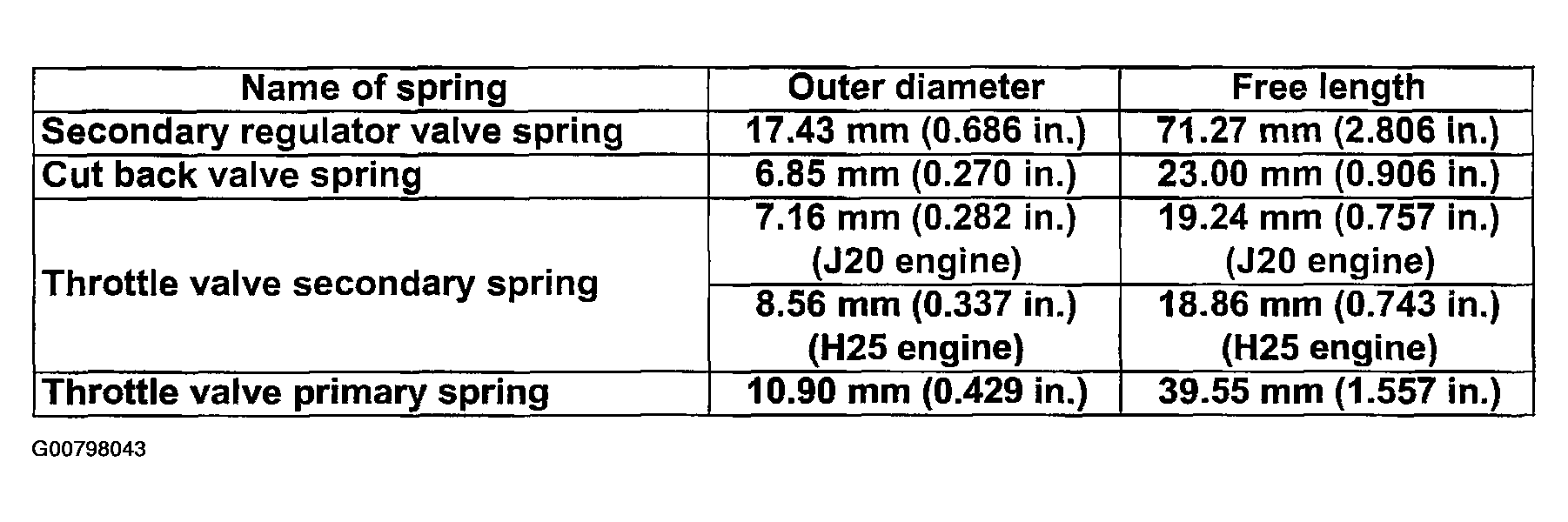

Fig 1: Coil Outer Diameter And Free Length Of Each Valve Spring Description Chart
Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Measuring Coil Outer Diameter And Free Length Of Each Valve Spring
Courtesy of SUZUKI OF AMERICA CORP.
Install as many throttle valve compensating rings as written down when disassembled.
Tighten throttle cam bolt (1) to specified torque.
Tightening torque

Throttle cam bolt (a): 7.5 N.m (0.75 kg-m, 5.5 lb-ft)

Fig 3: Tightening Throttle Cam Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Tighten pressure relief valve bolts (1) to specified torque.
Tightening torque

Pressure relief valve bolt (b): 5.5 N.m (0.55 kg-m, 4.0 lb-ft)

Fig 4: Tightening Pressure Relief Valve Bolt
Courtesy of SUZUKI OF AMERICA CORP.
