Front Upper Valve Body Components

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

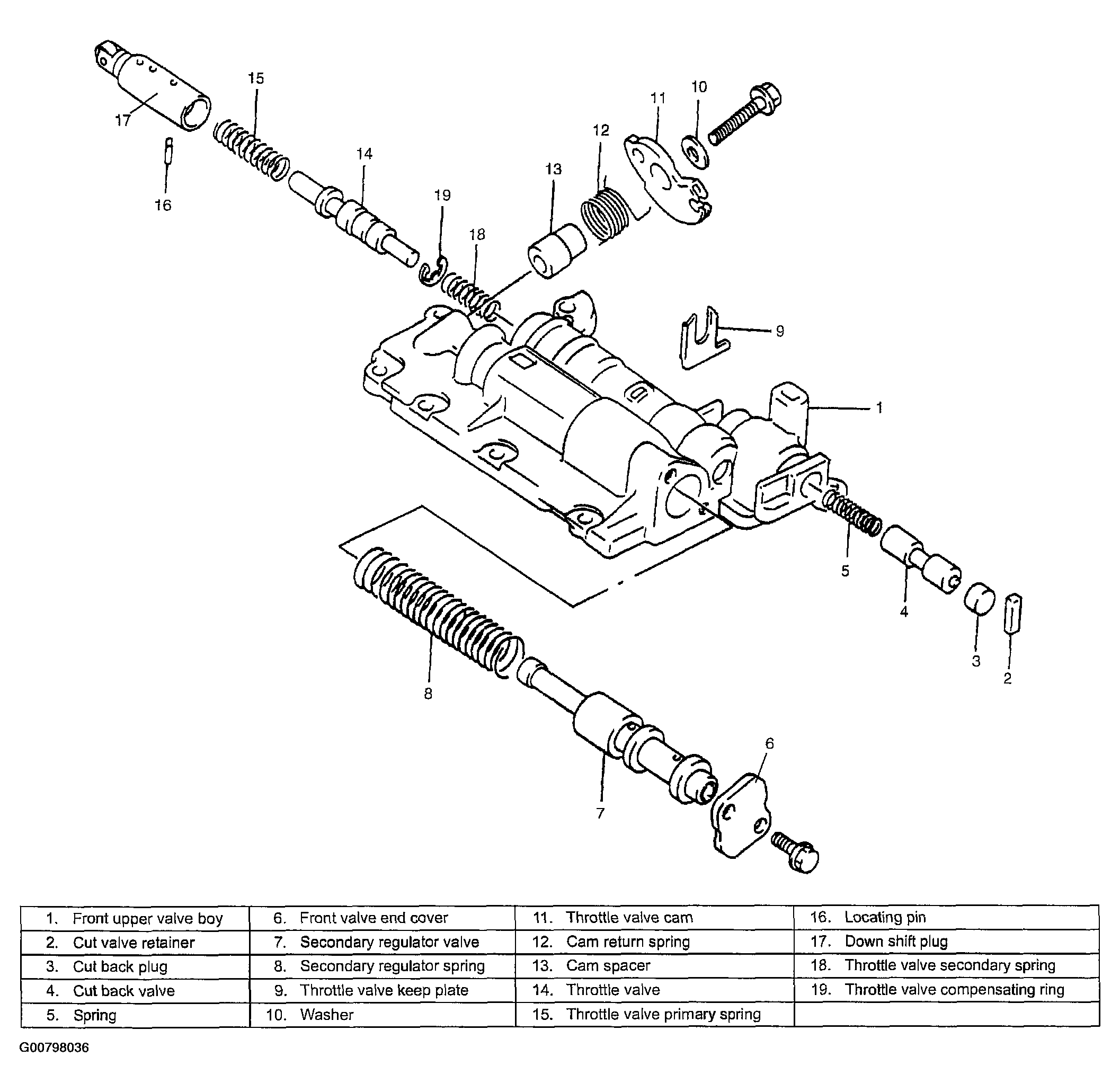

Fig 1: Identifying Front Upper Valve Body Components
G00798036Courtesy of SUZUKI OF AMERICA CORP.
