In engine room

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove battery, dipstick and oil filler tube.
  2. Disconnect A/T throttle cable (1) from throttle cam and bracket.

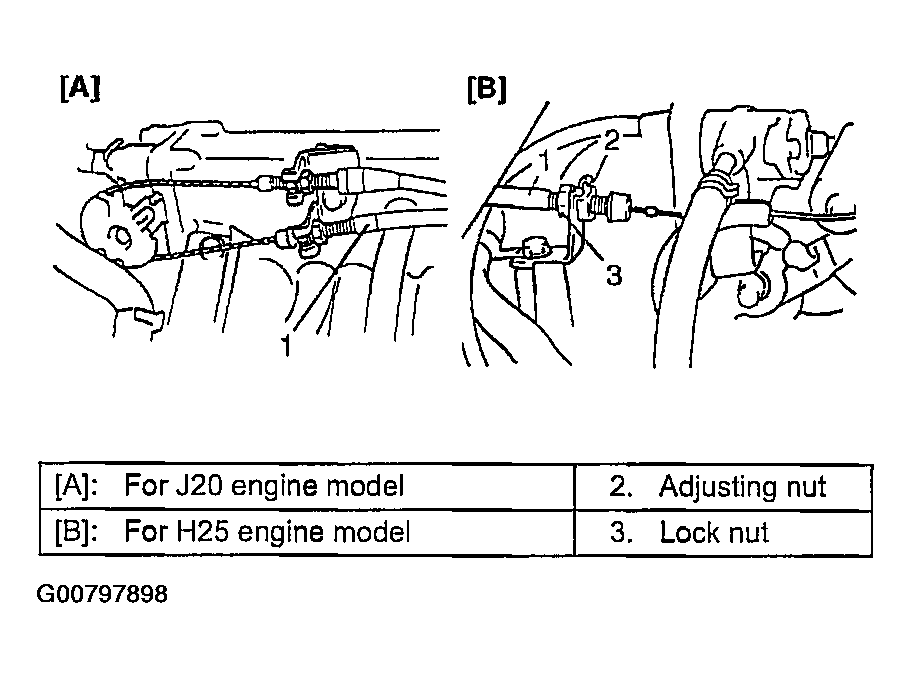

    Fig 1: Disconnecting A/T Throttle Cable From Throttle Cam And Bracket
    G00797898Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove starter motor. But don't disconnect its wiring harness.
  4. Remove transmission to engine bolt and nut.
