Dismounting In cabin

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

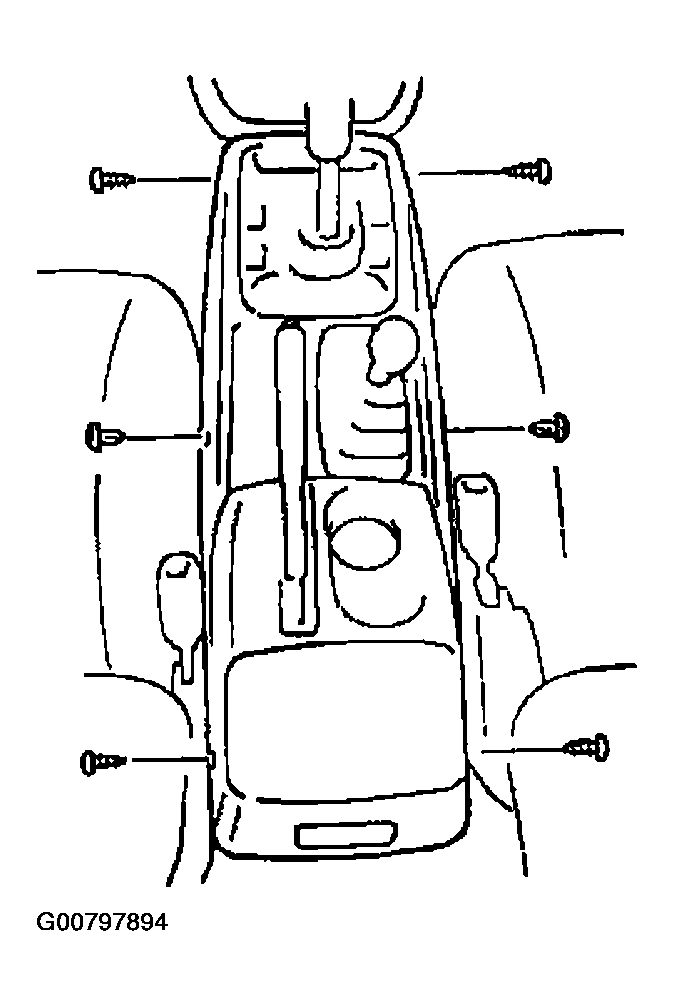

Remove console box.
NOTE: To remove clip, push in its center pin first.

Fig 1: Removing Console Box
Courtesy of SUZUKI OF AMERICA CORP.

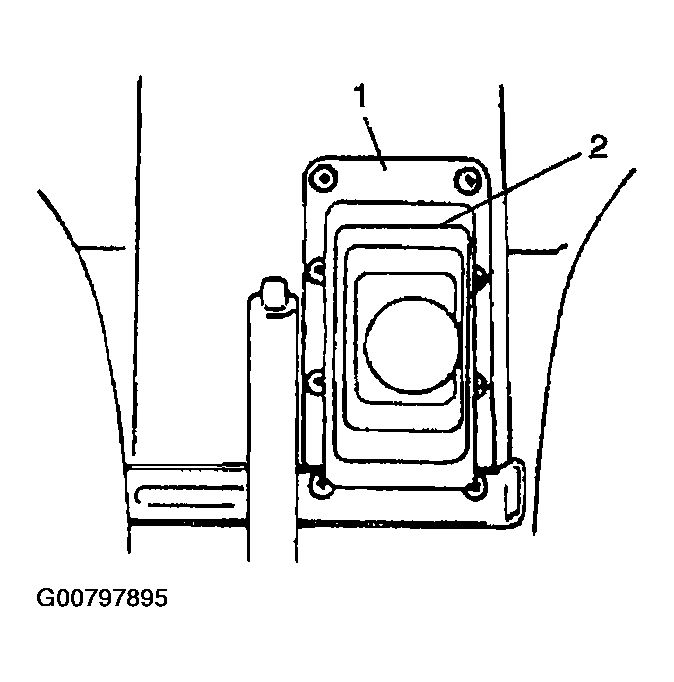

Remove boot cover (2) and boot No. 2 (1) (if equipped).

Fig 2: Removing Boot Cover And Boot
Courtesy of SUZUKI OF AMERICA CORP.

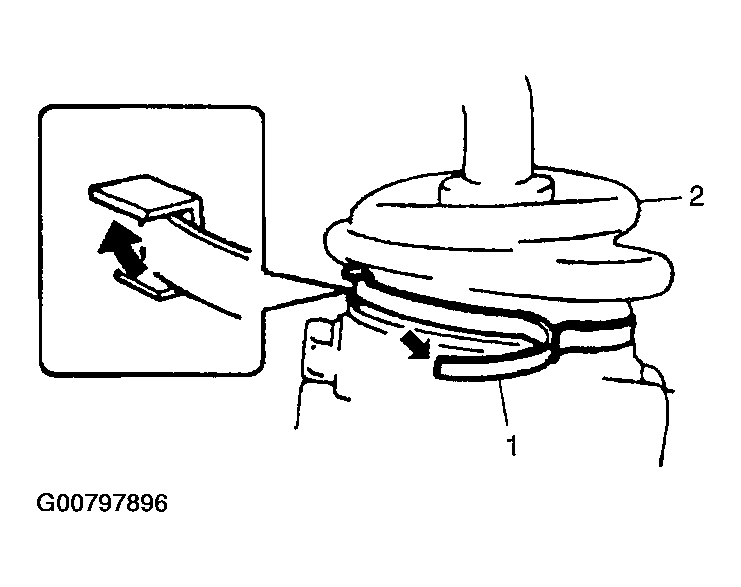

Remove boot clamp (1) and then remove boot No. 1 (2) from transfer gear shift lever case (if equipped).

Fig 3: Removing Boot Clamp And Boot From Transfer Gear Shift Lever Case
Courtesy of SUZUKI OF AMERICA CORP.

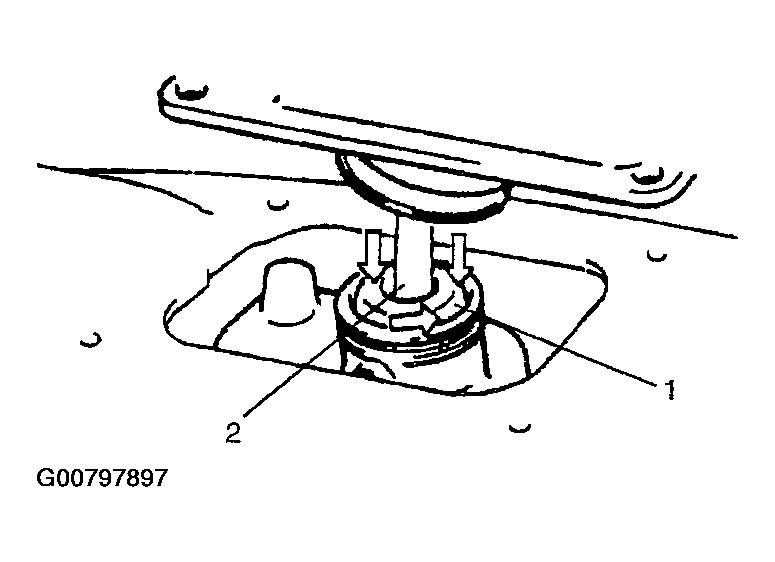

With transfer shift control case cover (1) pushed down with fingers, turn it to counterclockwise and take out shift control lever (2) (if equipped).

Fig 4: Identifying Transfer Shift Control Case Cover And Shift Control Lever
Courtesy of SUZUKI OF AMERICA CORP.
