A/T Fluid Change

1. Lift up vehicle.
2. With engine is cool, remove drain plug (1) from oil pan drain A/T fluid.
3. Install drain plug (1).

   Tightening torque

   A/T fluid drain plug (a): 23 N.m (2.3 kg-m, 17.0 lb-ft)

   Fig 1: Identifying A/T Fluid Drain Plug

   Courtesy of SUZUKI OF AMERICA CORP.
4. Lower vehicle and fill proper amount of an equivalent of DEXRON ® -III.
5. Check fluid level according to procedure described under "Level Check at Normal Operating Temperature" in "A/T Fluid Level Check:"

Fluid specification

An equivalent of DEXRON ® -III

Fluid capacity (when draining from drain plug hole)

4WD: 2.5 liters (5.28 / 4.40 US/lmp pt.)

2WD: 2.8 liters (5.92 / 4.93 US/lmp pt.)

Fluid capacity (when overhauling)

4WD: 7.1 liters (15.00 / 12.50 US/lmp pt.)

2WD: 7.4 liters (15.64 / 13.02 US/lmp pt.)

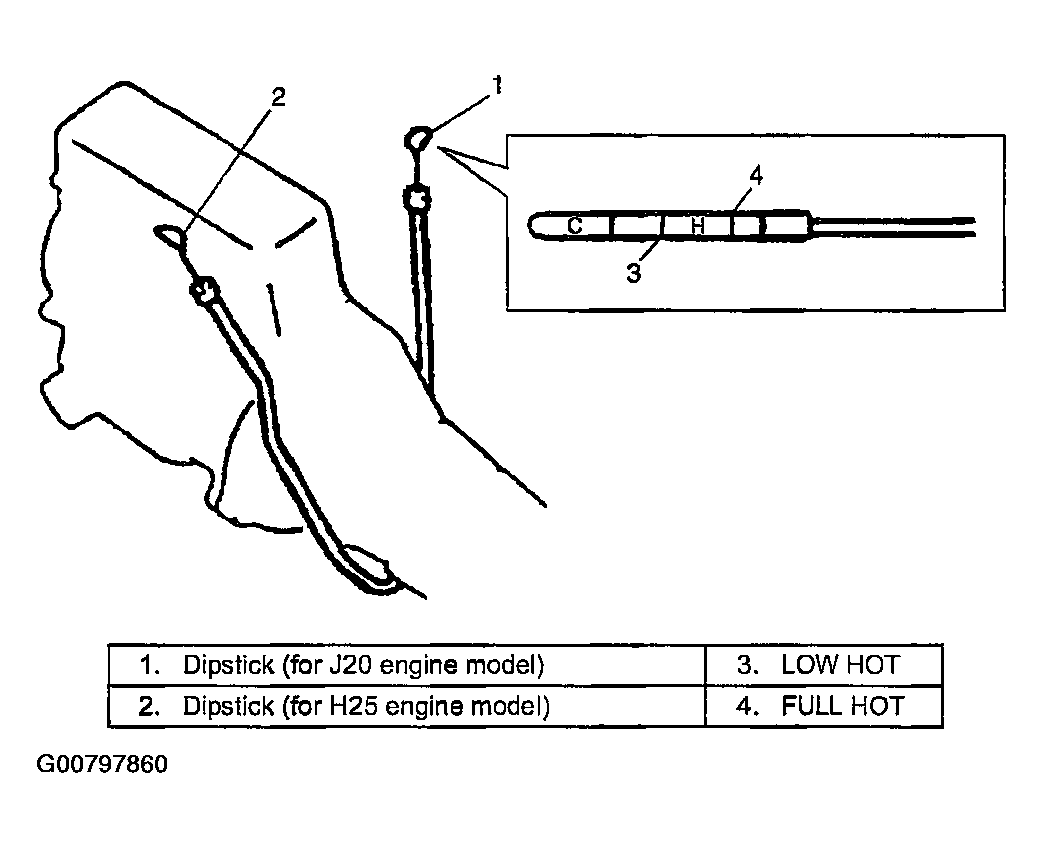

Fig 2: Identifying Dipsticks

Courtesy of SUZUKI OF AMERICA CORP.
