Part inspection and Correction Table

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

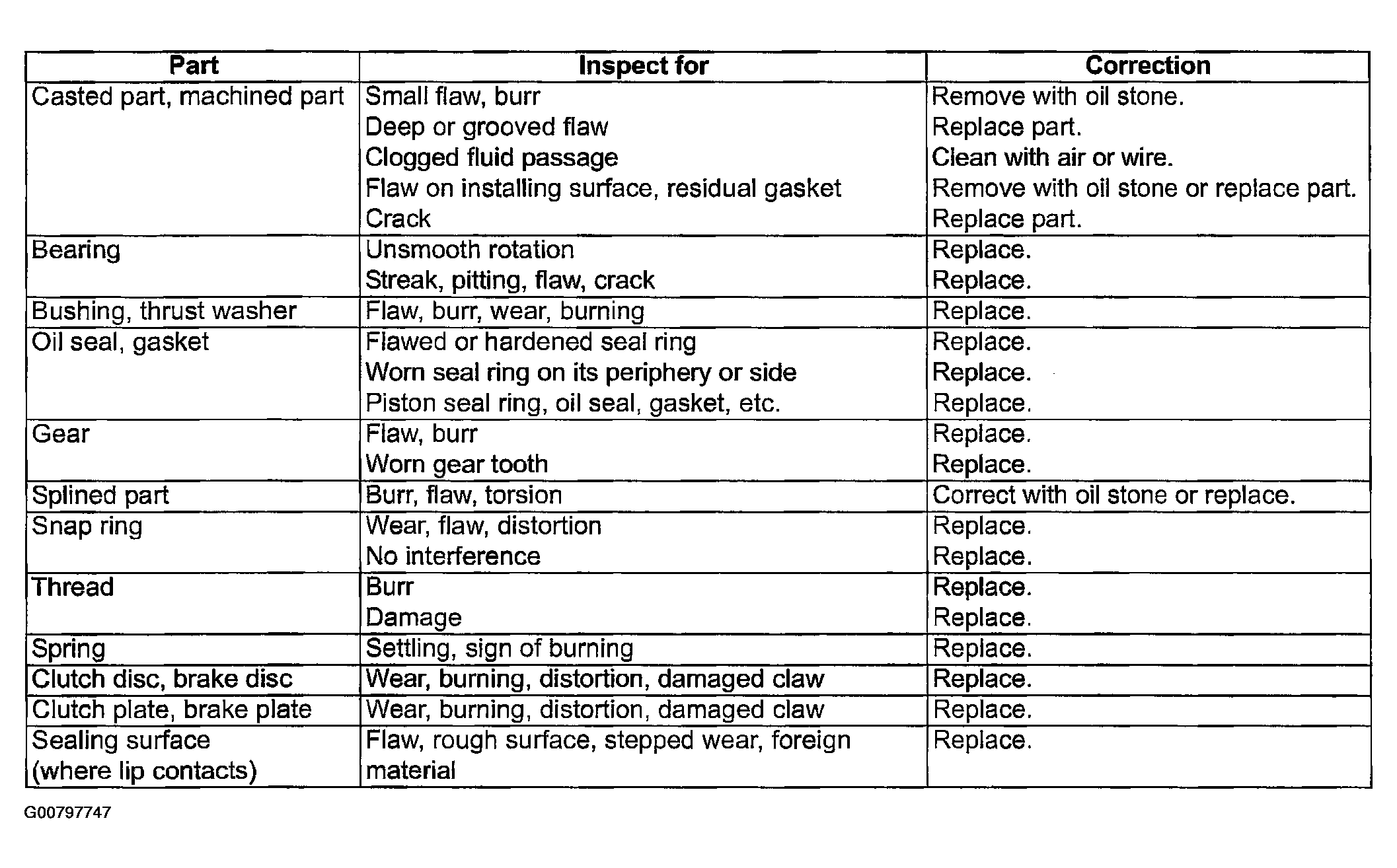

Fig 1: Part Inspection And Correction Table
G00797747Courtesy of SUZUKI OF AMERICA CORP.
