General Description
>>
Clutch/Brake Functions of Automatic Transmission
Clutch/Brake Functions of Automatic Transmission
WARNING:
This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

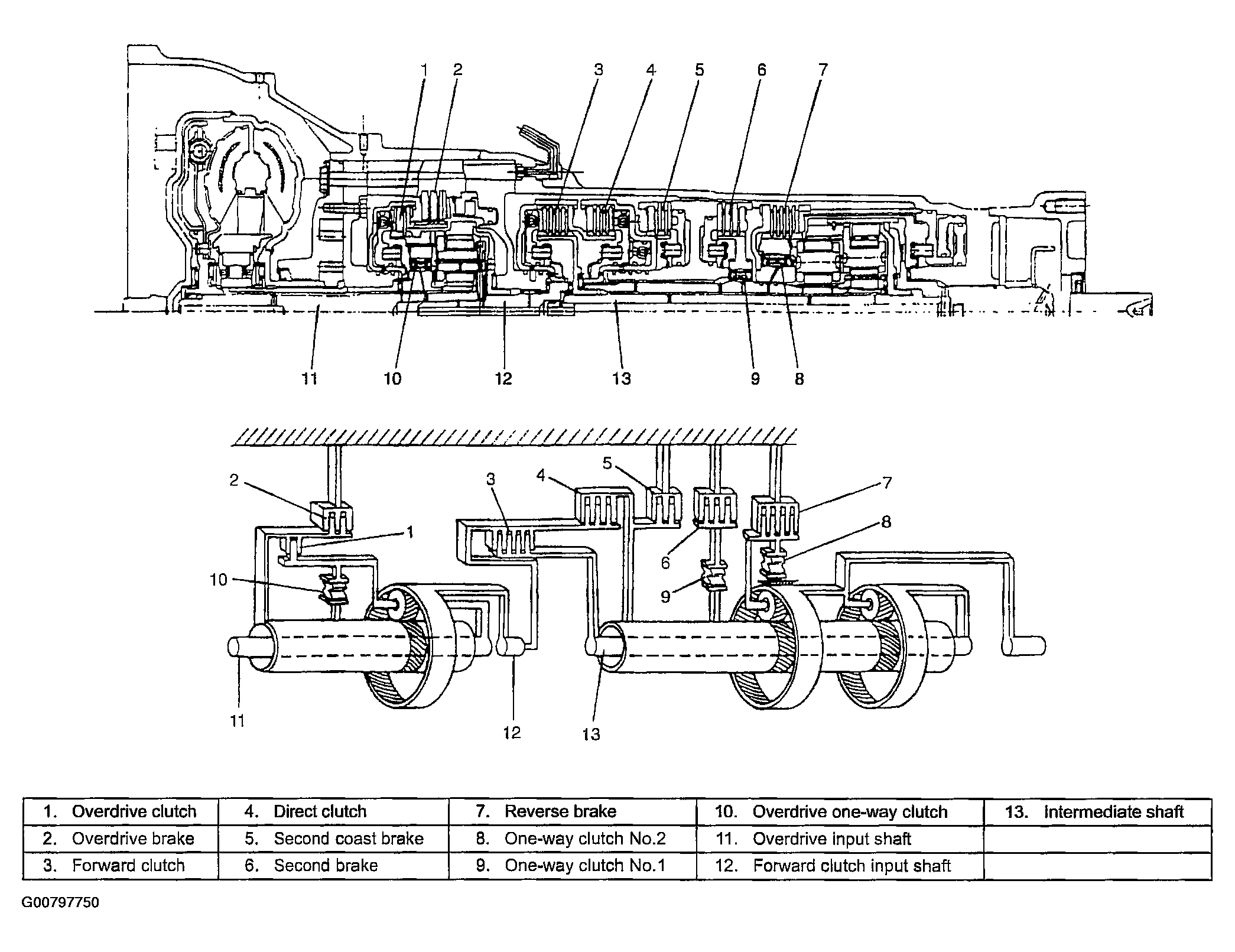

Fig 1: Identifying Clutch/Brake Functions Of Automatic Transmission
Courtesy of SUZUKI OF AMERICA CORP.

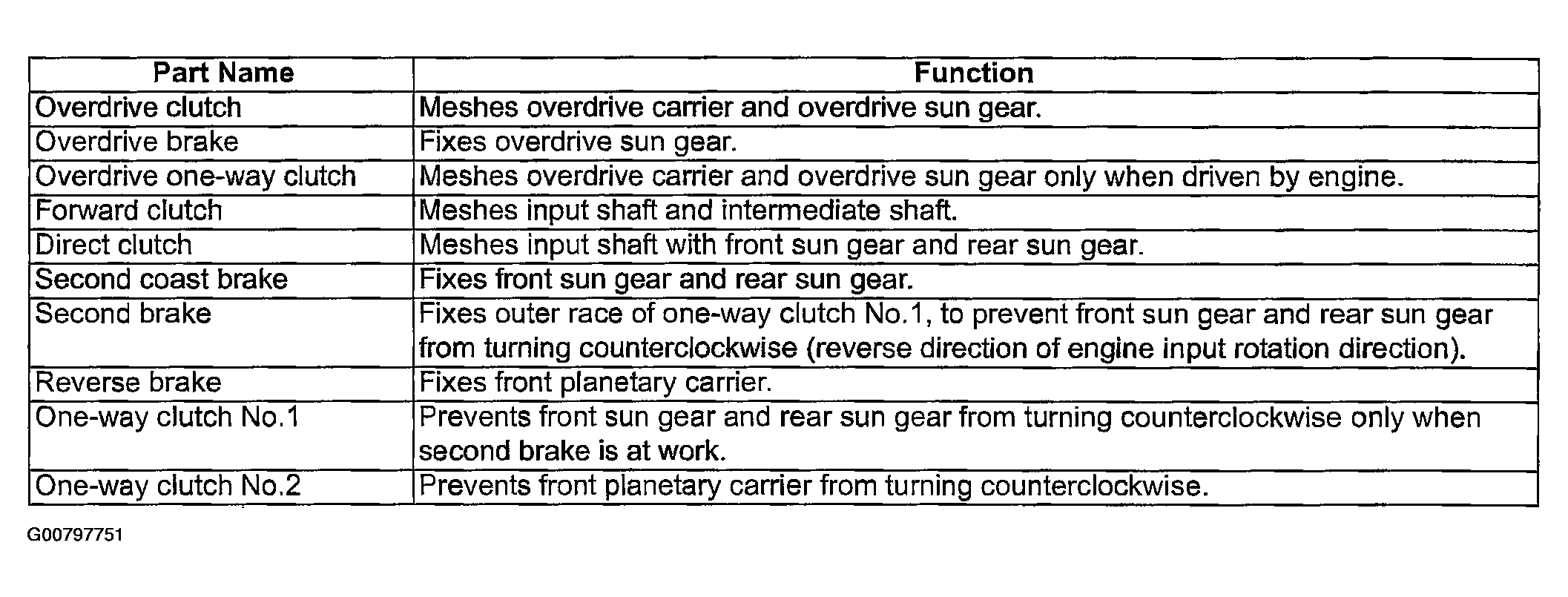

Fig 2: Part Function Chart
Courtesy of SUZUKI OF AMERICA CORP.
