No Gear Shift to O/D: Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
Road test should be carried out with 2 persons, a driver and a tester, on a level road.

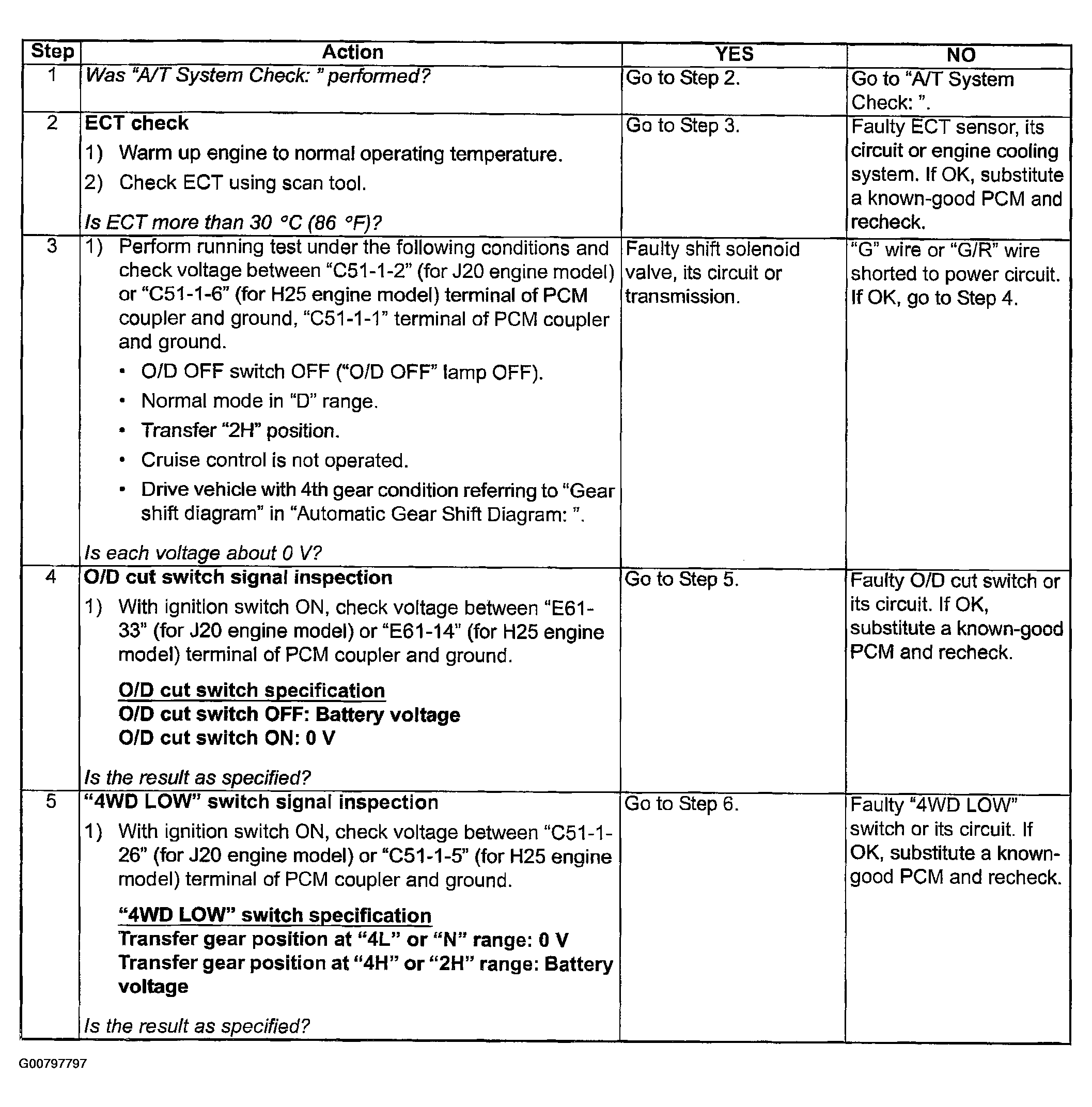

Fig 1: No Gear Shift to O/D Diagnostic Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

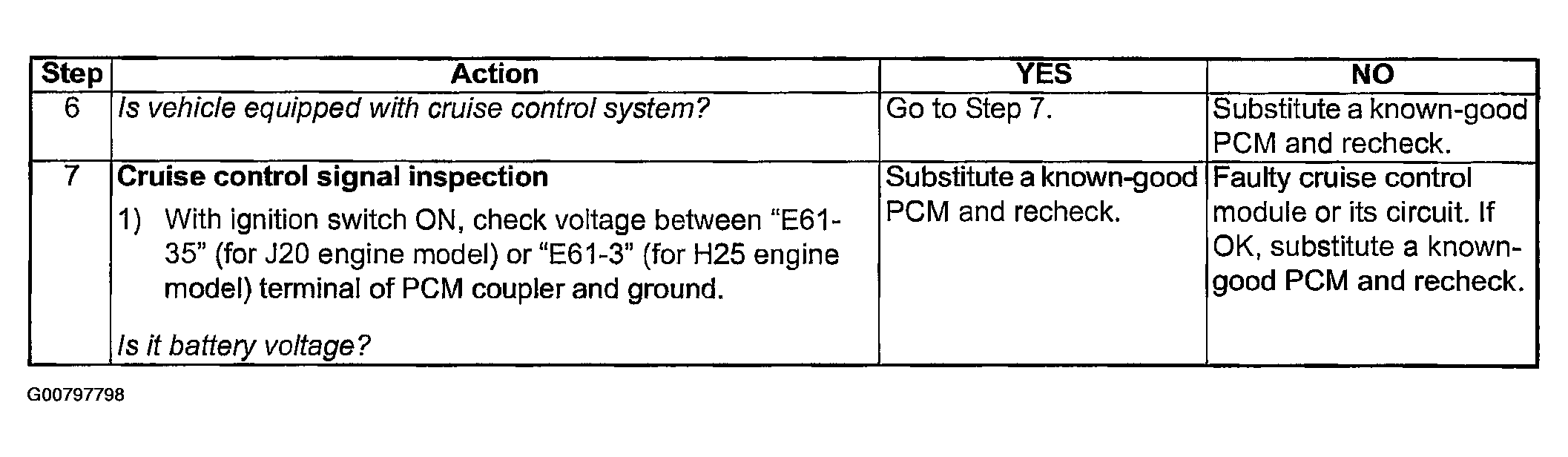

Fig 2: No Gear Shift to O/D Diagnostic Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
