DTC P1875: "4WD LOW" Switch Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

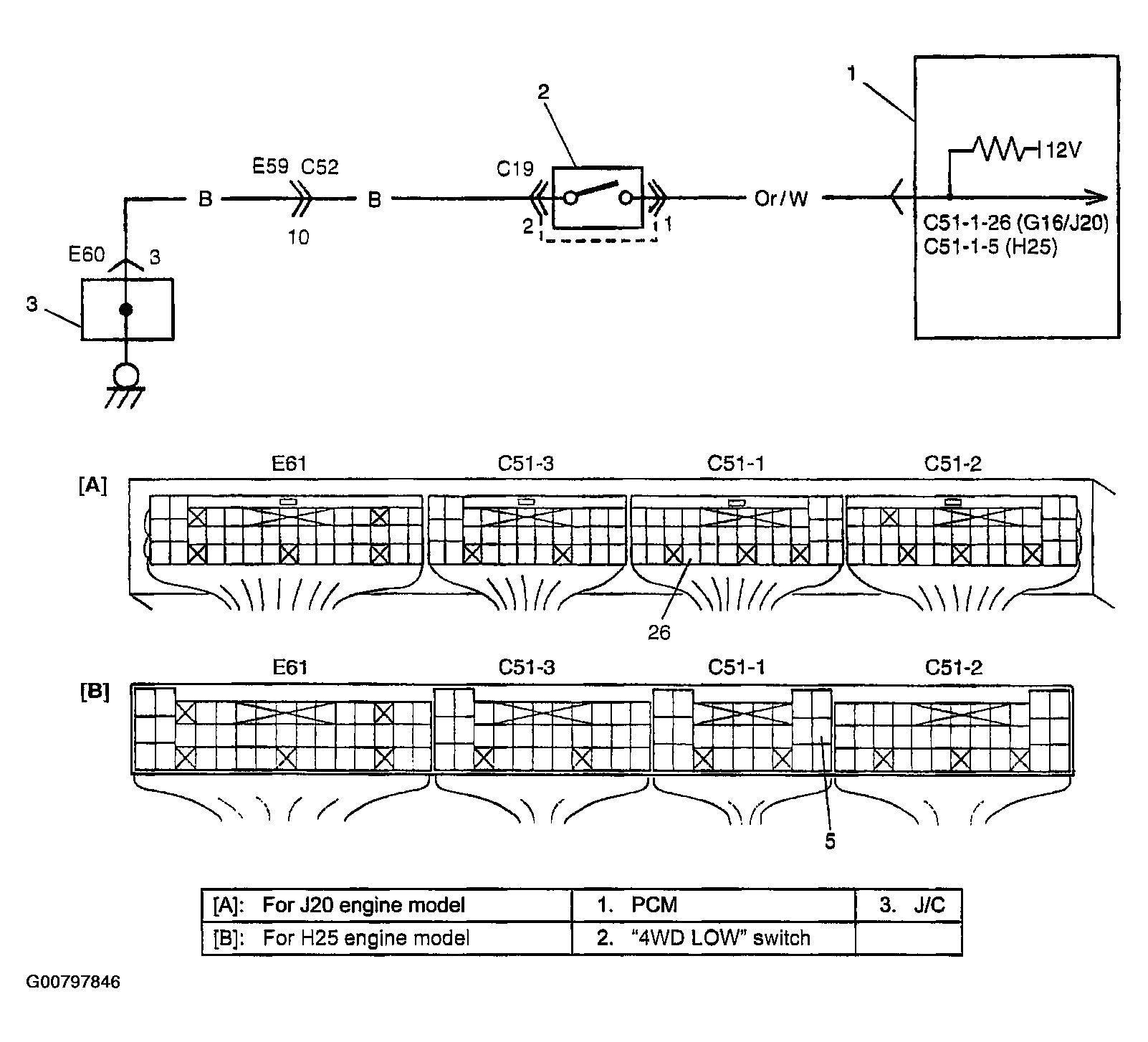

Fig 1: DTC P1875: "4WD Low" Switch Circuit Malfunction Wiring Diagram
G00797846Courtesy of SUZUKI OF AMERICA CORP.
