Diagnostic Trouble Codes Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

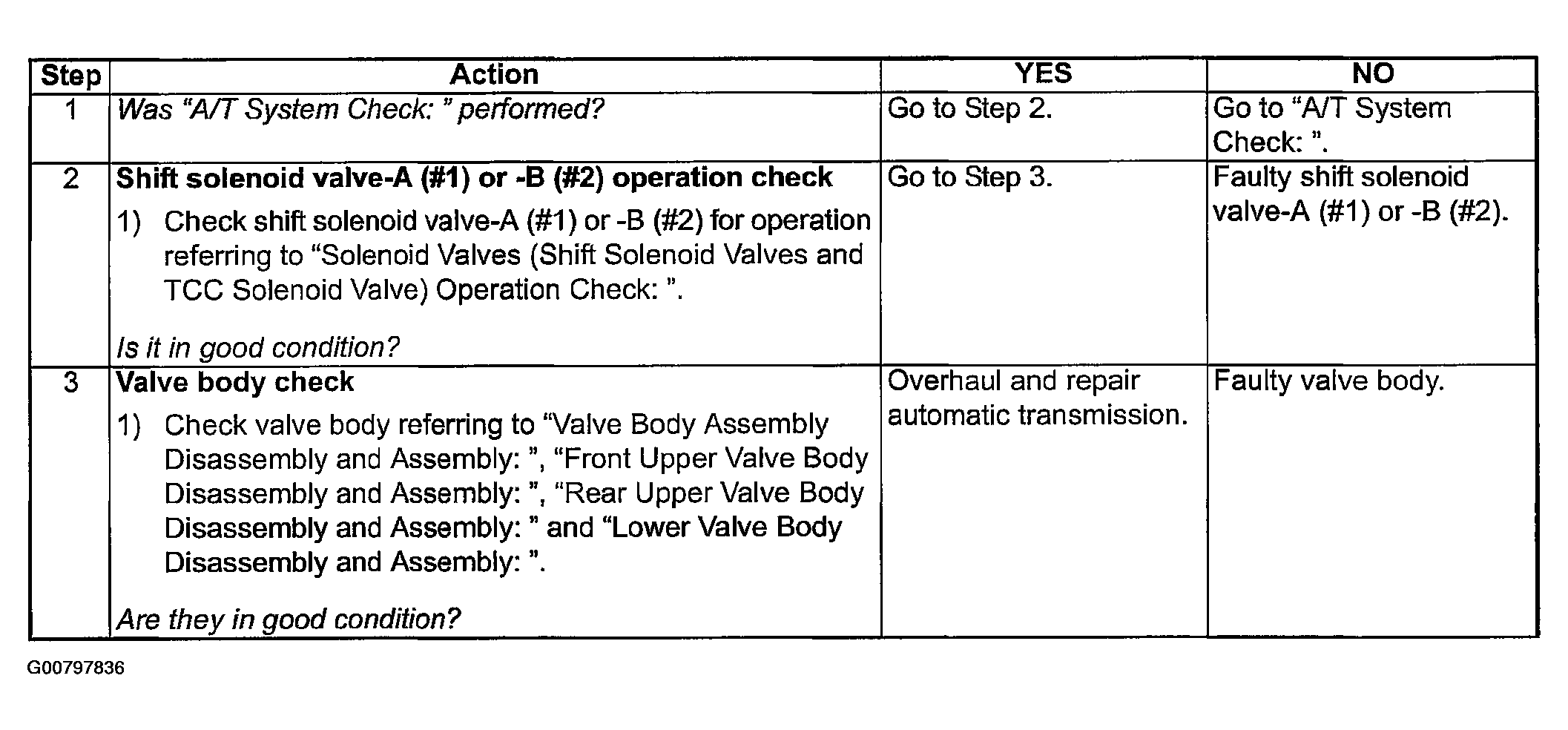

Fig 1: DTC P0751 / P0752 / P0756 / P0757 Troubleshooting Chart
G00797836Courtesy of SUZUKI OF AMERICA CORP.
