Section 175 (Diagnosis & Overhaul)
>>
Automatic Transmission
>>
Diagnostic Information and Procedures
>>
DTC P0741, P0742: TCC (Lock-Up) Solenoid Valve Performance or Stuck OFF/ON
>>
Diagnostic Trouble Codes Troubleshooting
Diagnostic Trouble Codes Troubleshooting
WARNING:
This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

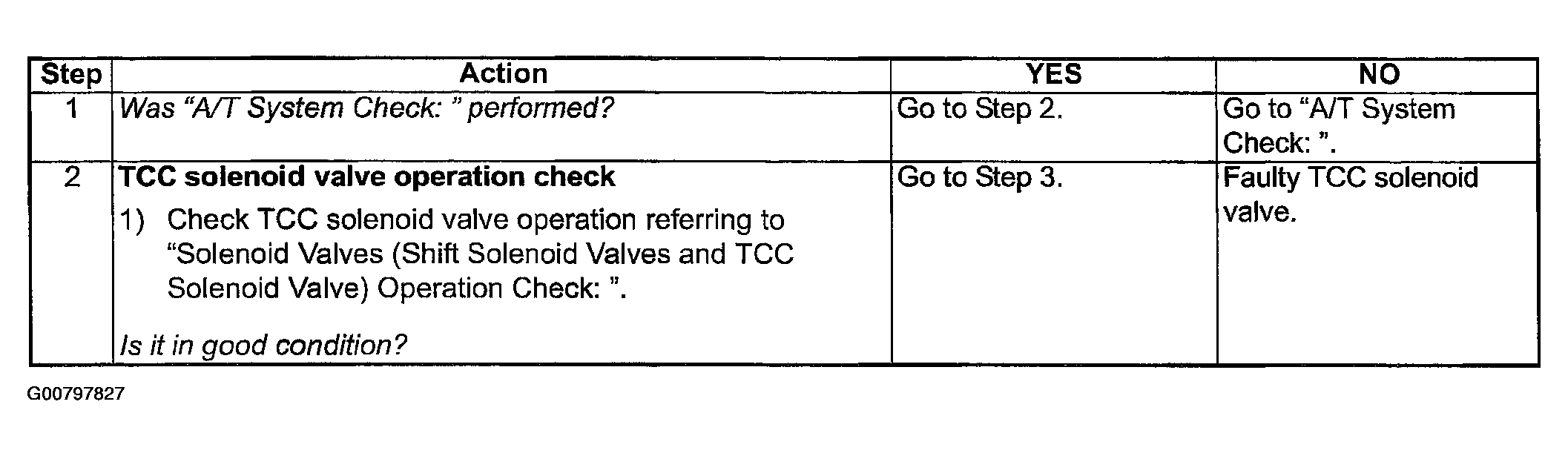

Fig 1: DTC P0741 / P0742 Troubleshooting Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

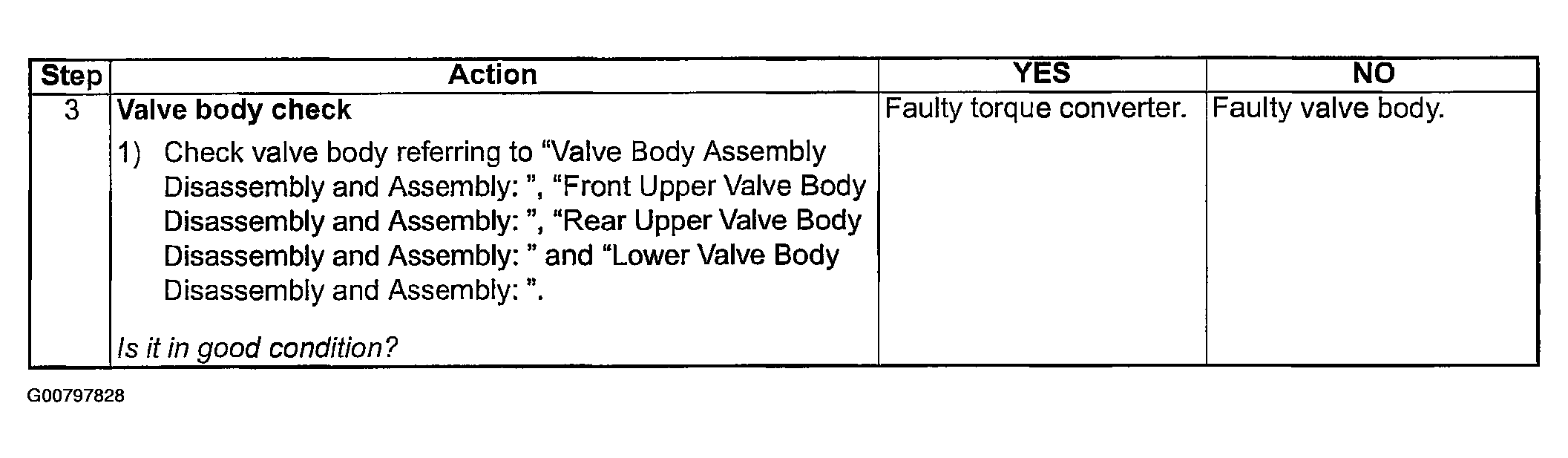

Fig 2: DTC P0741 / P0742 Troubleshooting Chart (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
