DTC P0722: Output Speed Sensor Circuit No Signal
>>
Oscilloscope waveforms at about 40 km/h (25 mph)
Oscilloscope waveforms at about 40 km/h (25 mph)
WARNING:
This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

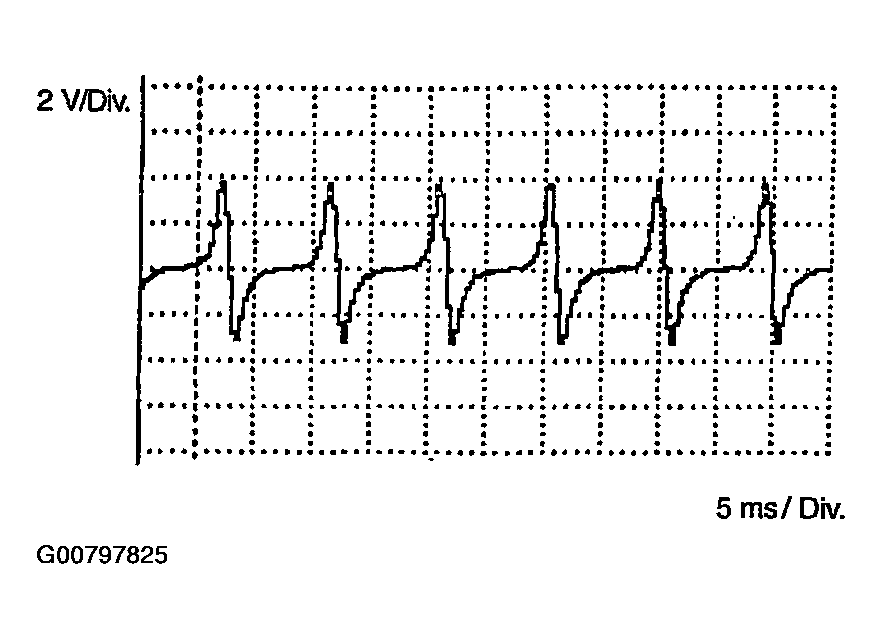

Fig 1: Identifying Oscilloscope Waveforms At About 40 Km/H (25 Mph)
Courtesy of SUZUKI OF AMERICA CORP.
