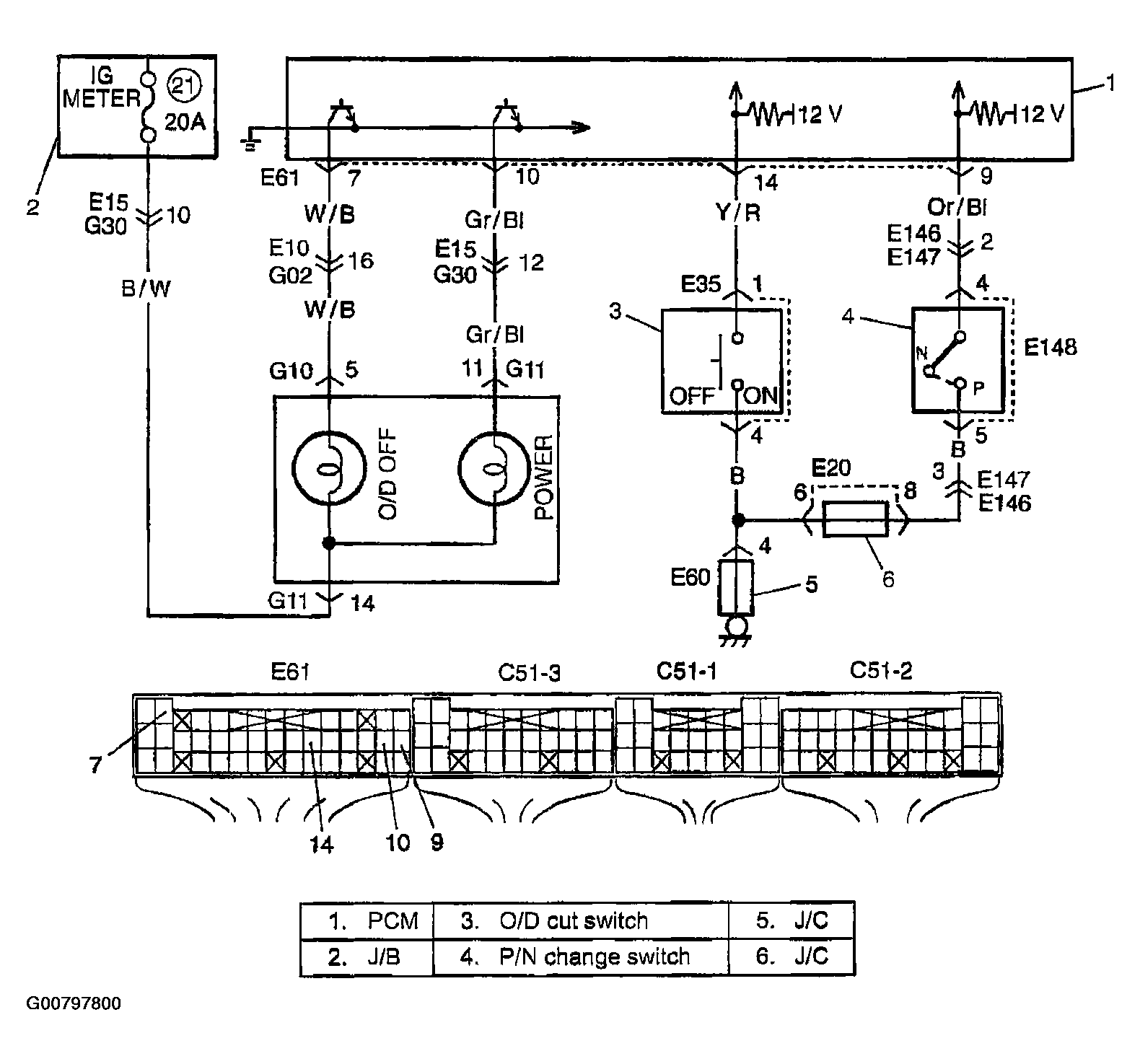

Fig 1: "O/D OFF" Light Does Not Light At Ignition Switch On But Engine Starts Up Wiring Diagram (H25 Engine Model)
G00797800Courtesy of SUZUKI OF AMERICA CORP.
