Terminal Arrangement of EBCM Connector (E136) (Viewed from Harness Side)

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

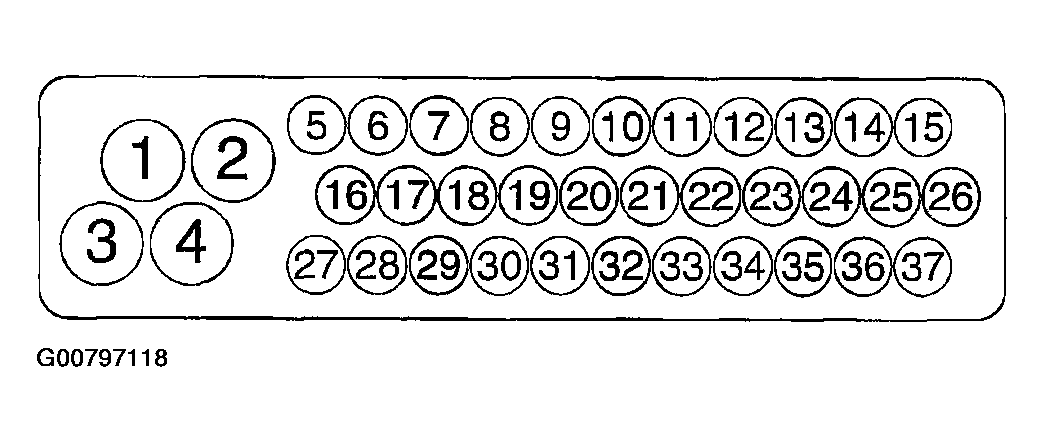

Fig 1: Identifying Terminal Arrangement Of EBCM Connector (E136) (Viewed From Harness Side)
G00797118Courtesy of SUZUKI OF AMERICA CORP.

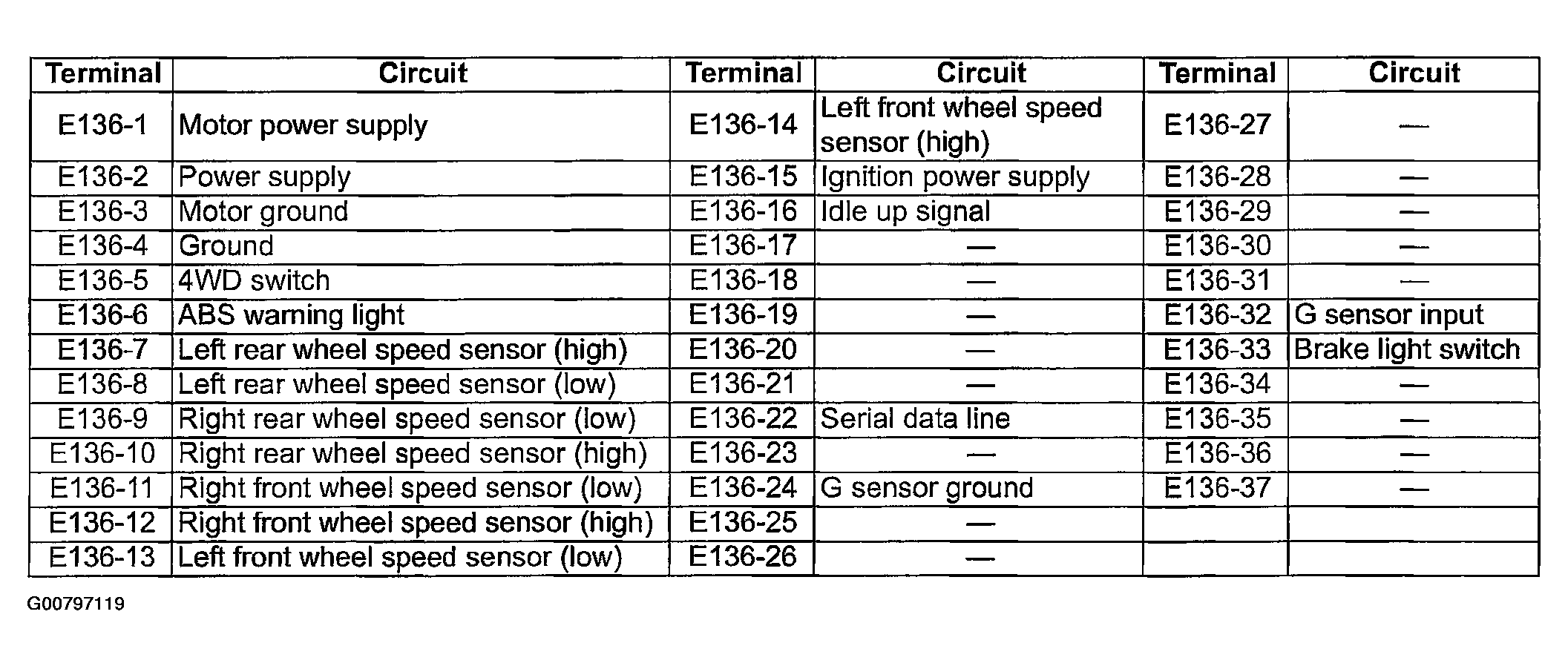

Fig 2: Terminal Specification Chart
G00797119Courtesy of SUZUKI OF AMERICA CORP.
