DTC C1295: Brake Light Switch Circuit Open: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

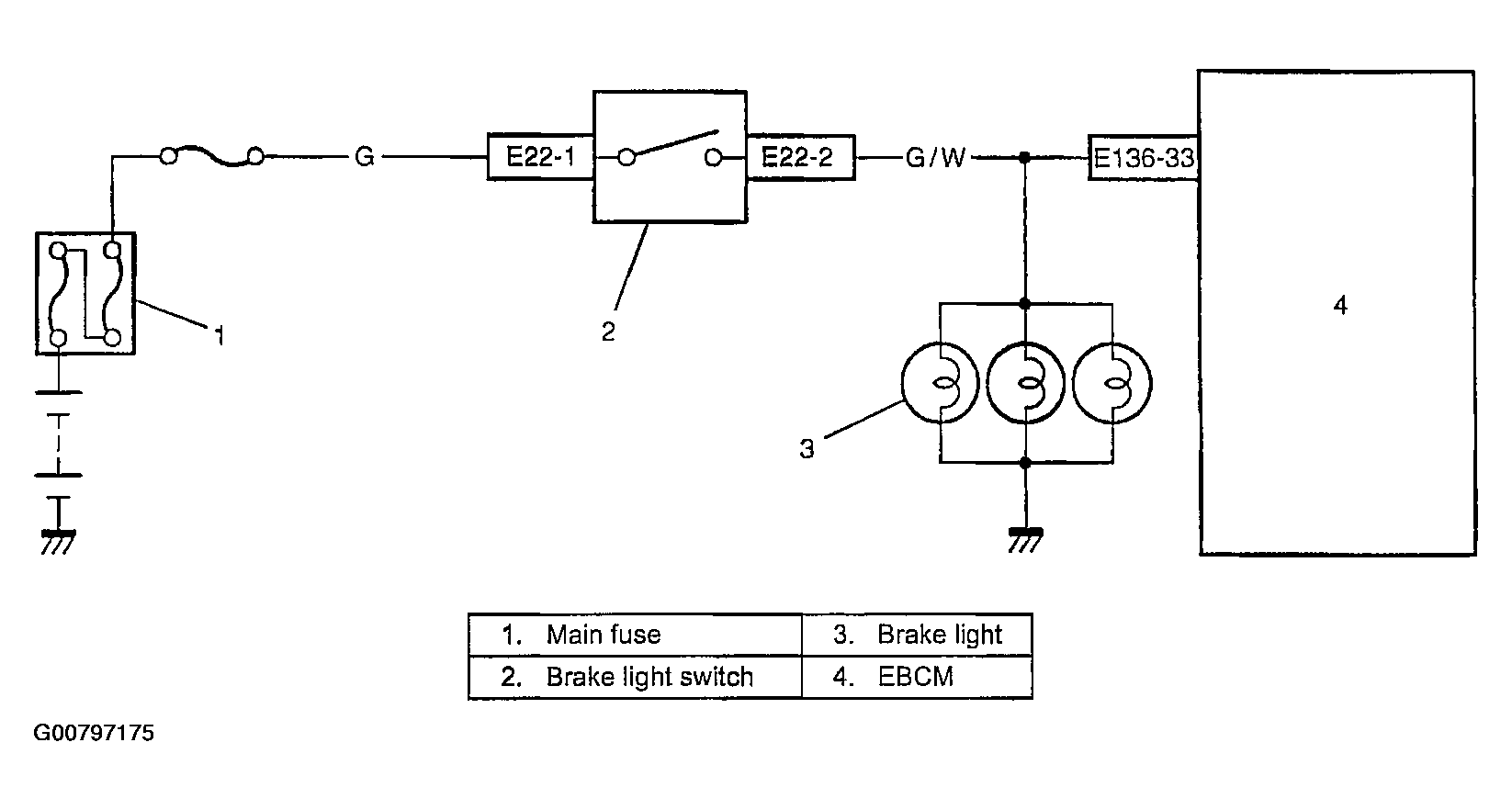

Fig 1: DTC C1295: Brake Light Switch Circuit Wiring diagram
G00797175Courtesy of SUZUKI OF AMERICA CORP.
