DTC C1257: G Sensor Faulty (For 4WD Vehicle): Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

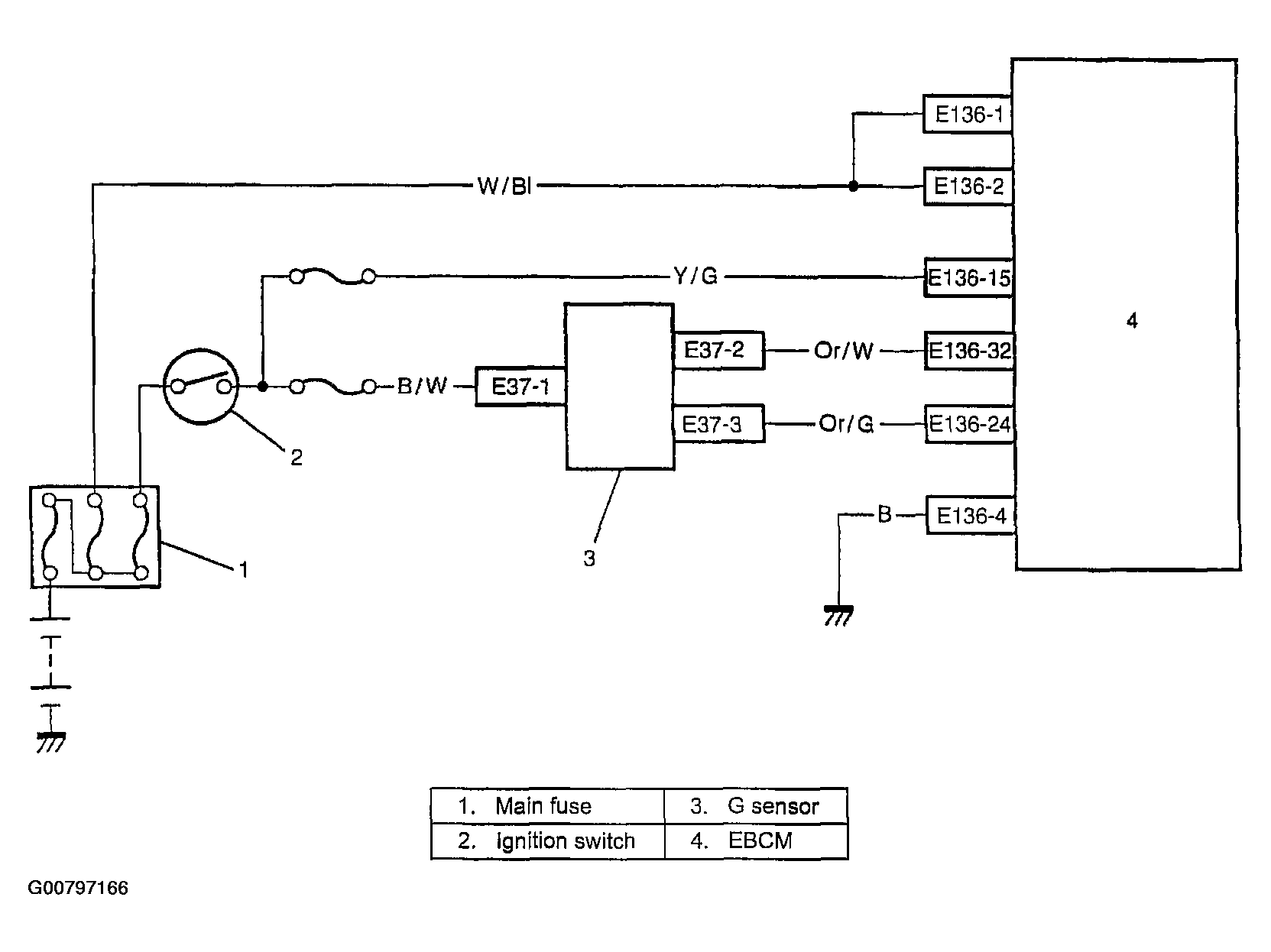

Fig 1: DTC C1257: G Sensor Faulty (for 4WD Vehicle) (Wiring Diagram)
G00797166Courtesy of SUZUKI OF AMERICA CORP.
