DTC C1255, C1256: EBCM Internal Malfunction (ABS Disabled/Functional): Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

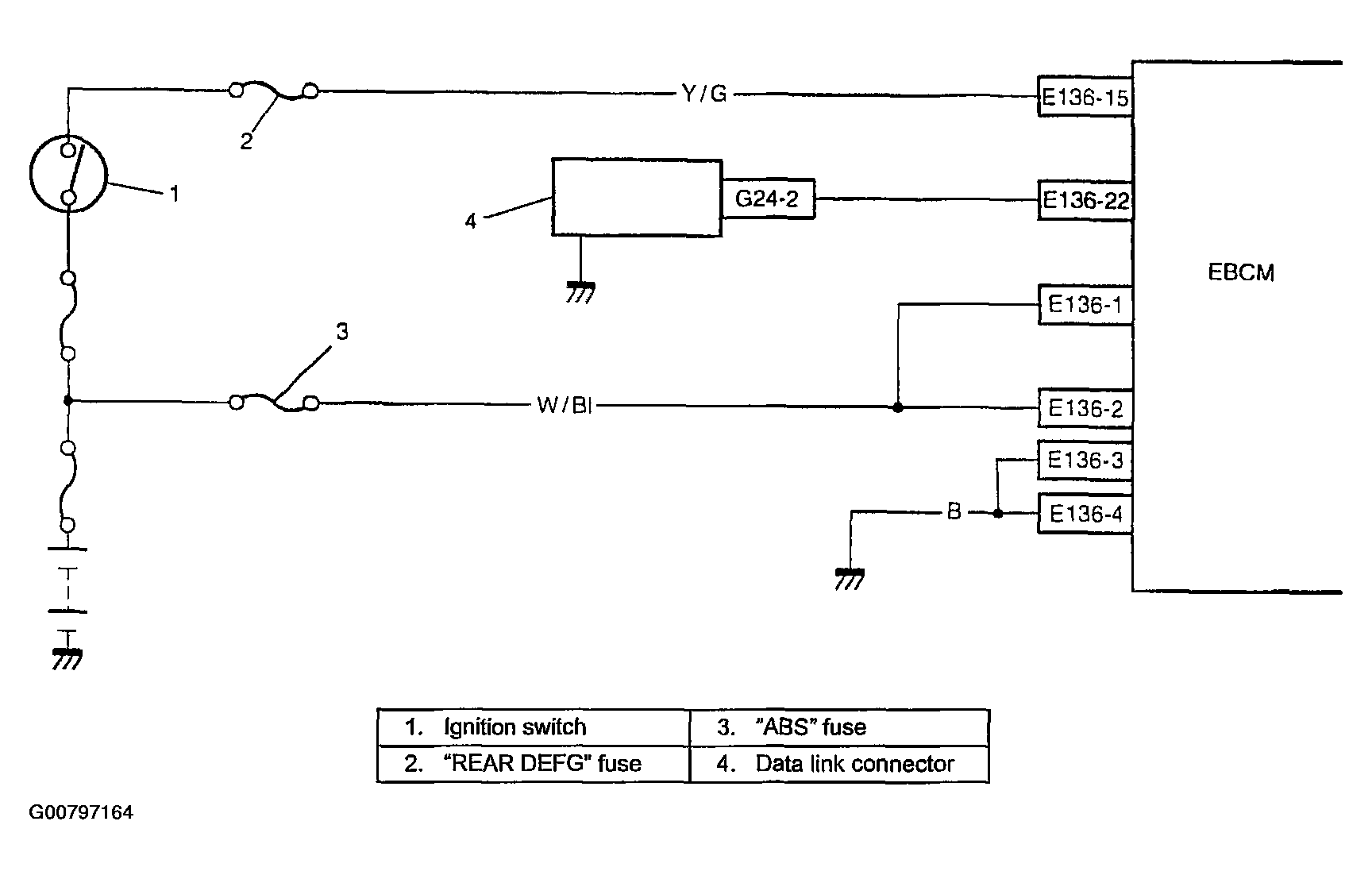

Fig 1: DTC C1255 / C1256: EBCM Internal Malfunction (ABS Disabled / Functional) (Wiring Diagram)
G00797164Courtesy of SUZUKI OF AMERICA CORP.
