DTC C1225, C1226, C1227, C1228: Excessive Wheel Speed Variation: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

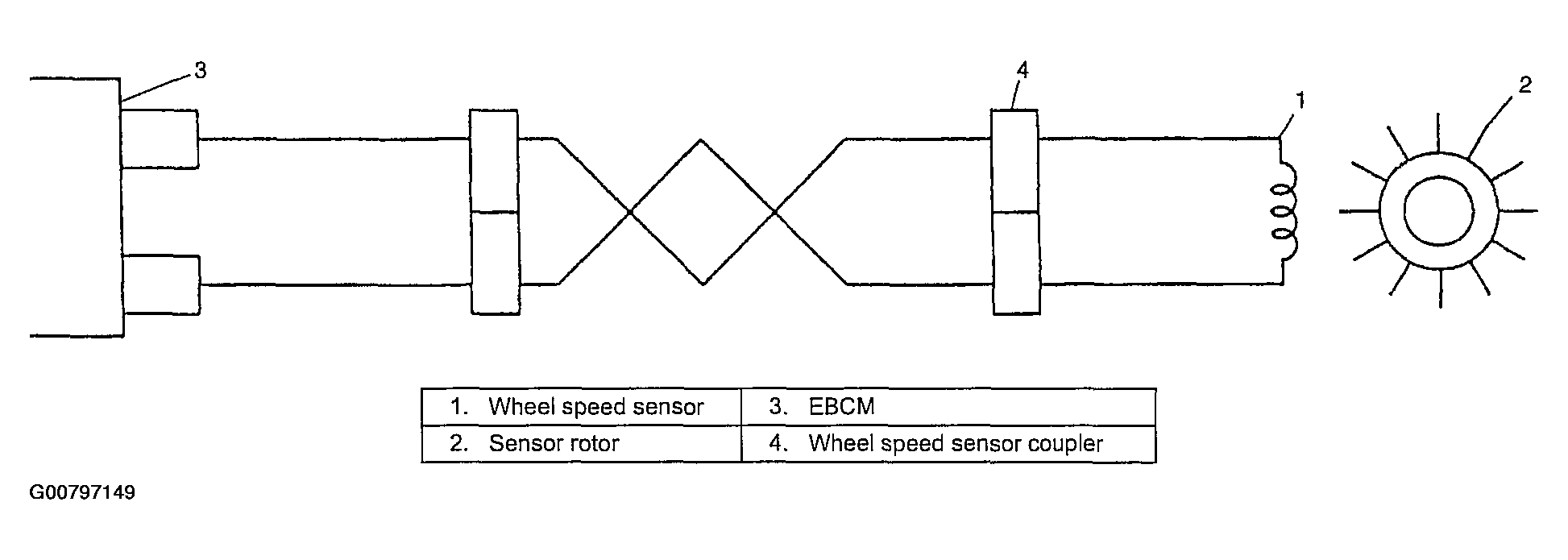

Fig 1: DTC C1225 / C1226/ C1227 / C1228: Excessive Wheel Speed Variation (Wiring Diagram)
G00797149Courtesy of SUZUKI OF AMERICA CORP.
