Diagnostic Trouble Codes Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: ABS Check  must be performed first before using this flow.

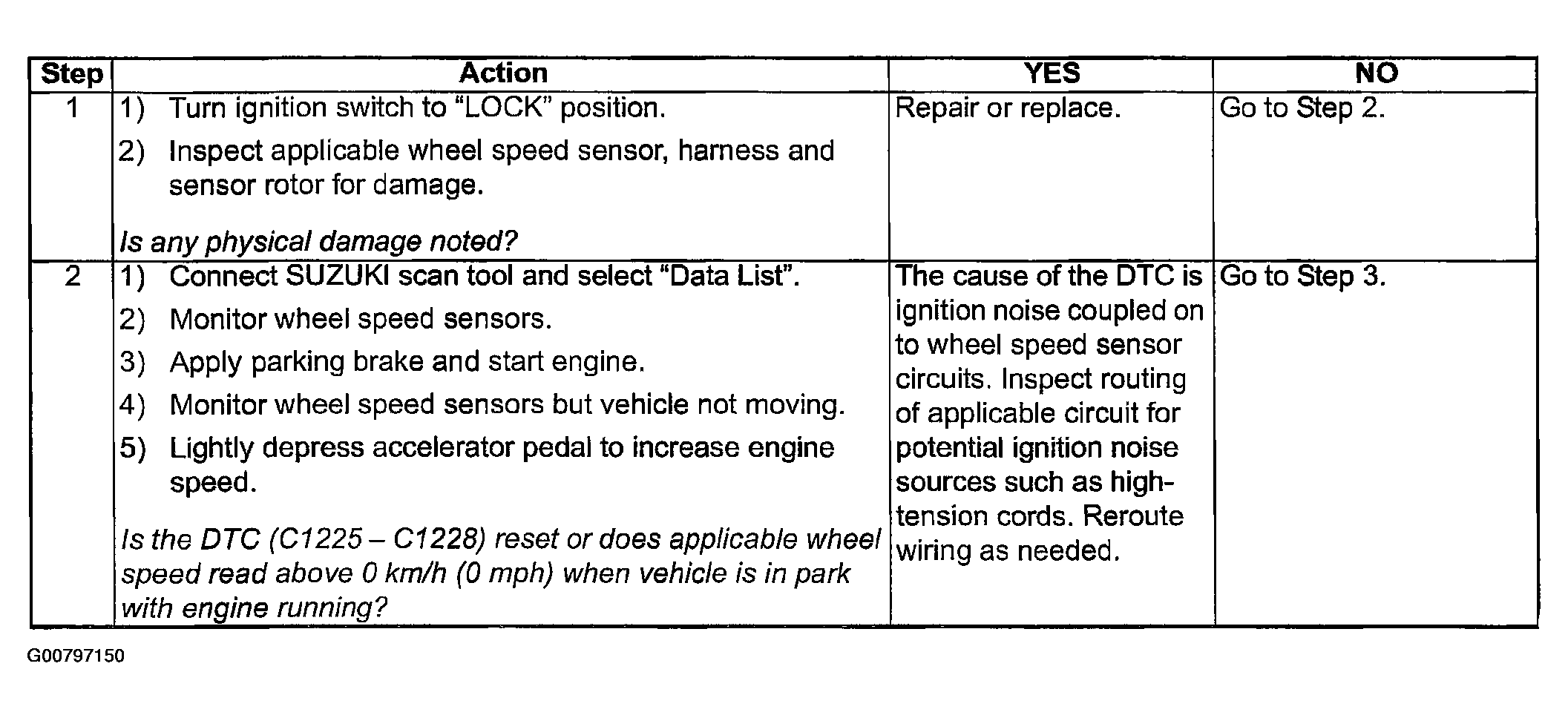

Fig 1: DTC C1225 / C1226/ C1227 / C1228 Troubleshooting Chart (1 Of 2)
G00797150Courtesy of SUZUKI OF AMERICA CORP.

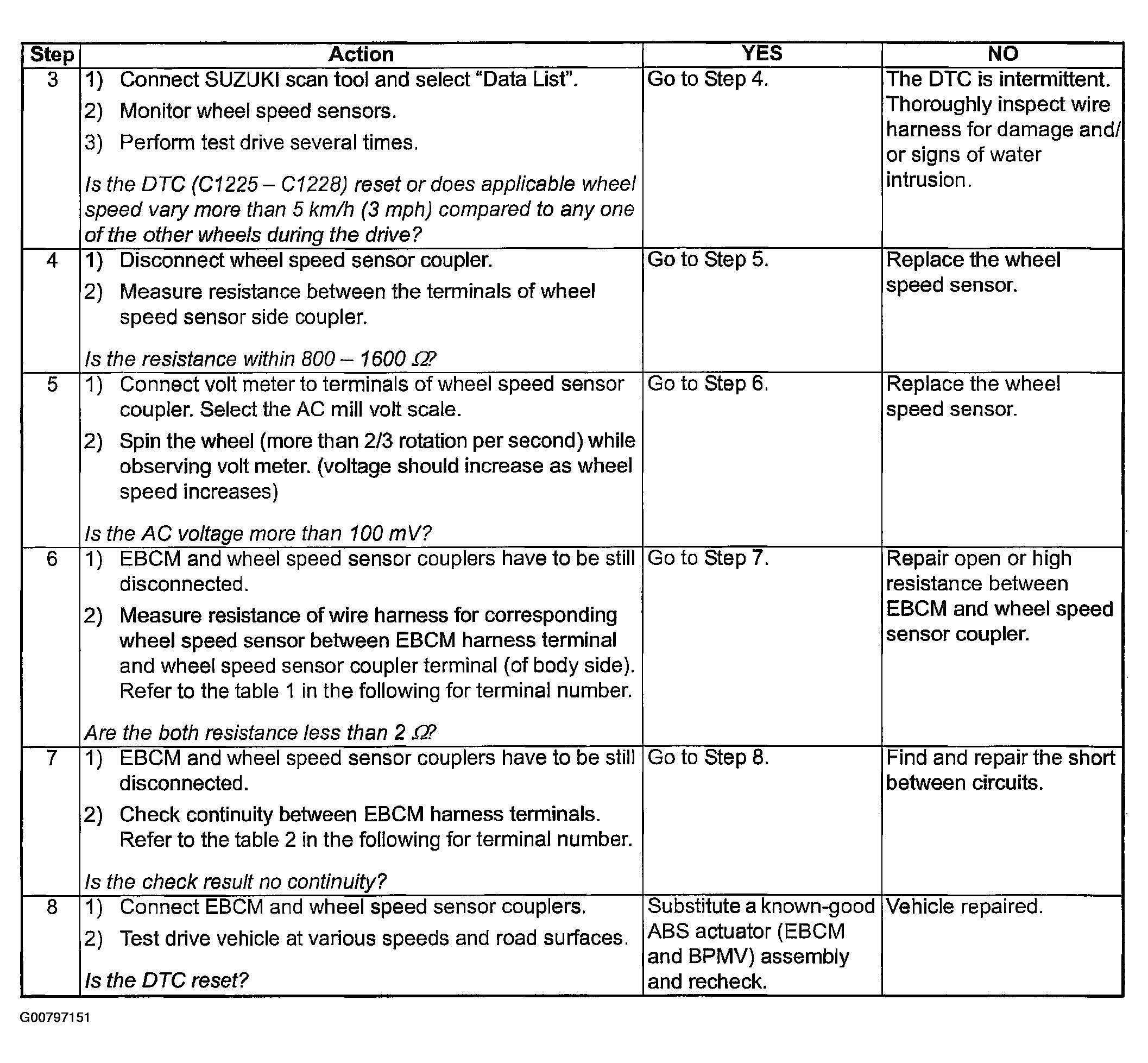

Fig 2: DTC C1225 / C1226/ C1227 / C1228 Troubleshooting Chart (2 Of 2)
G00797151Courtesy of SUZUKI OF AMERICA CORP.
