DTC C1221, C1222, C1223, C1224: Wheel Speed Sensor Input Signal = 0: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

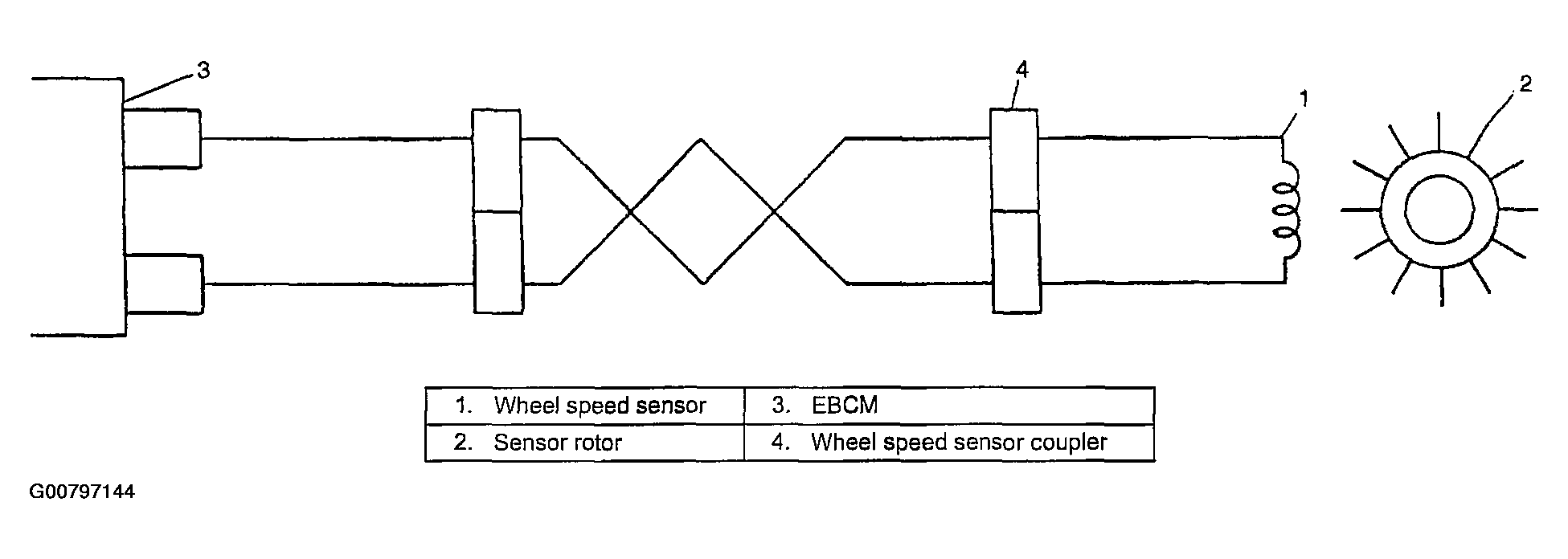

Fig 1: DTC C1221 / C1222 / C1223 / C1224: Wheel Speed Sensor Input Signal (Wiring Diagram)
G00797144Courtesy of SUZUKI OF AMERICA CORP.
