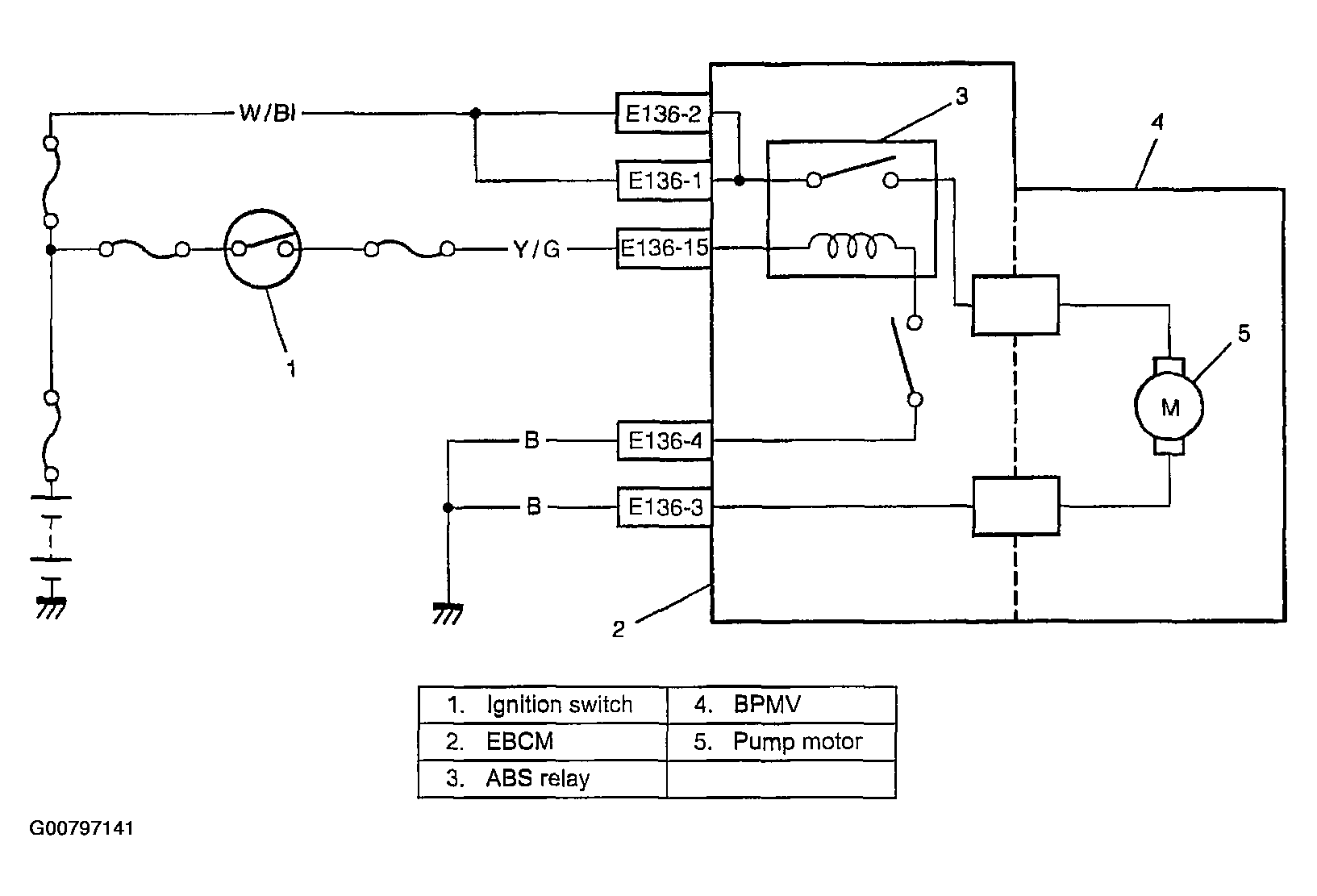

DTC C1217, C1242: Pump Motor Circuit Shorted to Ground/Open: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
