"ABS" Warning Light ON, No Diagnostic Trouble Code(s) Stored: Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: "ABS Check:" must be performed first before using this flow.

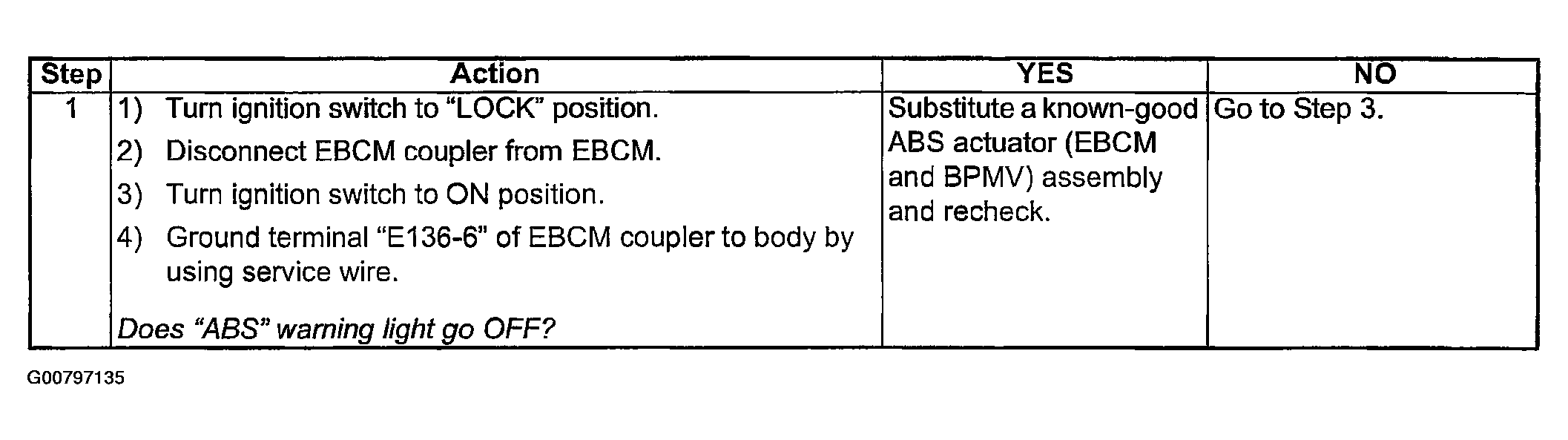

Fig 1: Troubleshooting Table (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

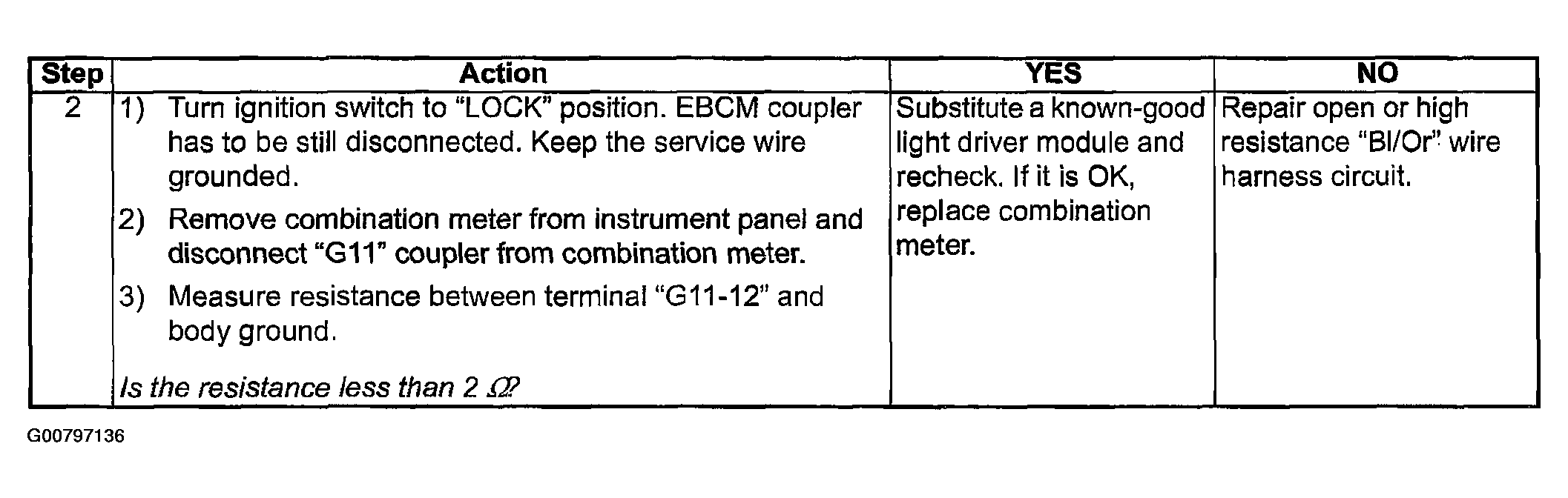

Fig 2: Troubleshooting Table (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
