"ABS" Warning Light Inoperative, No Diagnostic Trouble Code(s) Stored: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

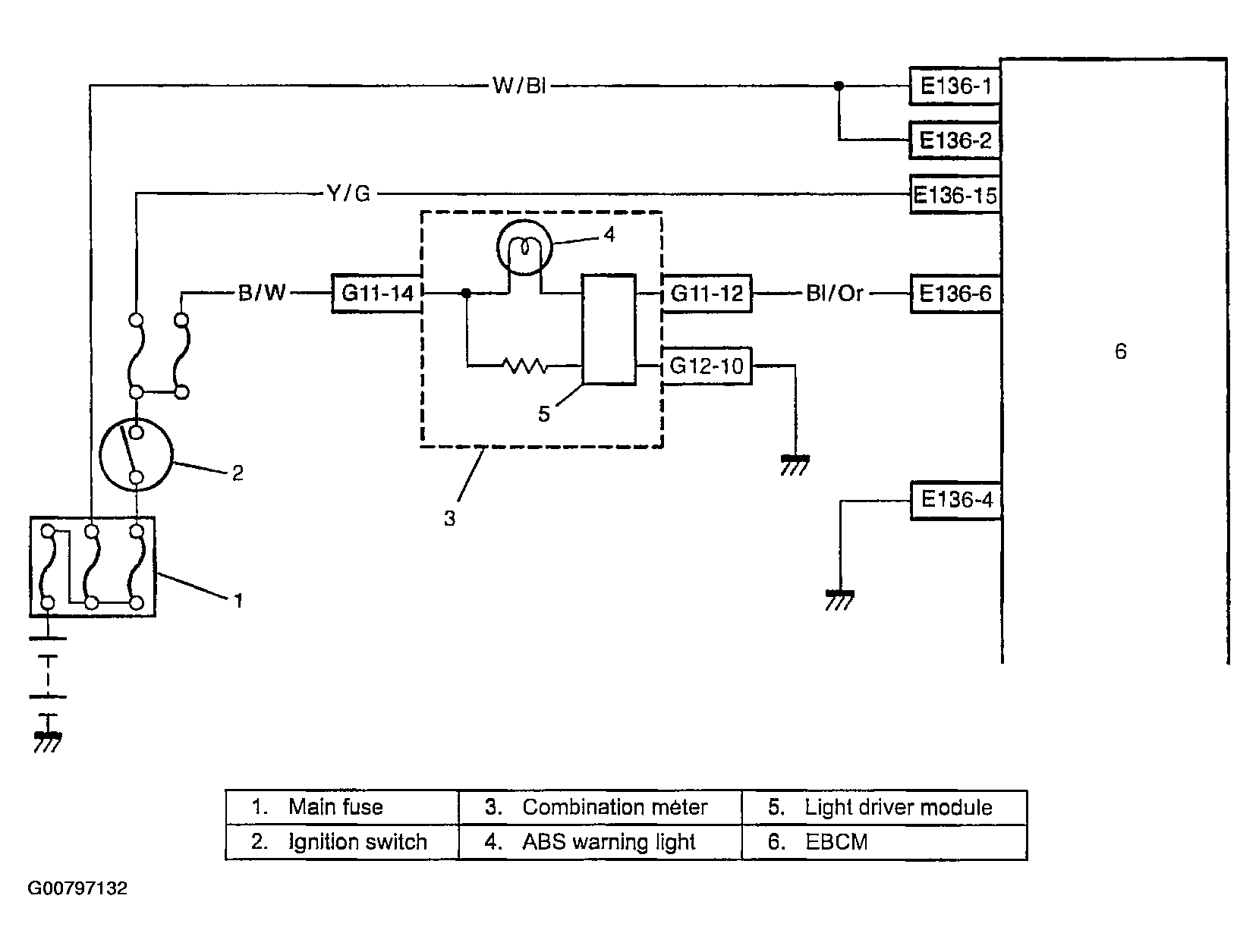

Fig 1: ABS - Warning Light Wiring Diagram
G00797132Courtesy of SUZUKI OF AMERICA CORP.
