Brake Symptom Diagnosis

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

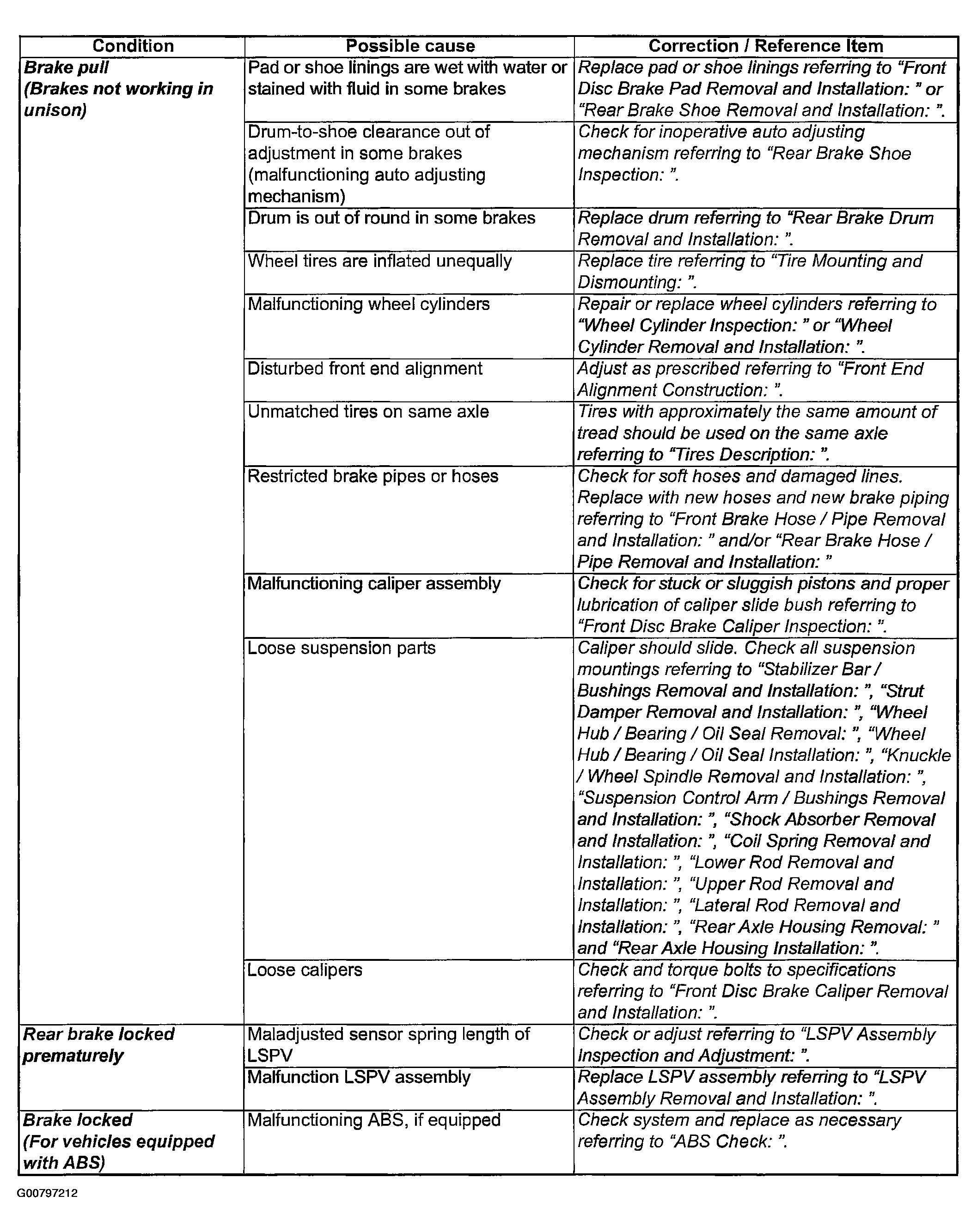

Fig 1: Brake Trouble Symptom Chart (1 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

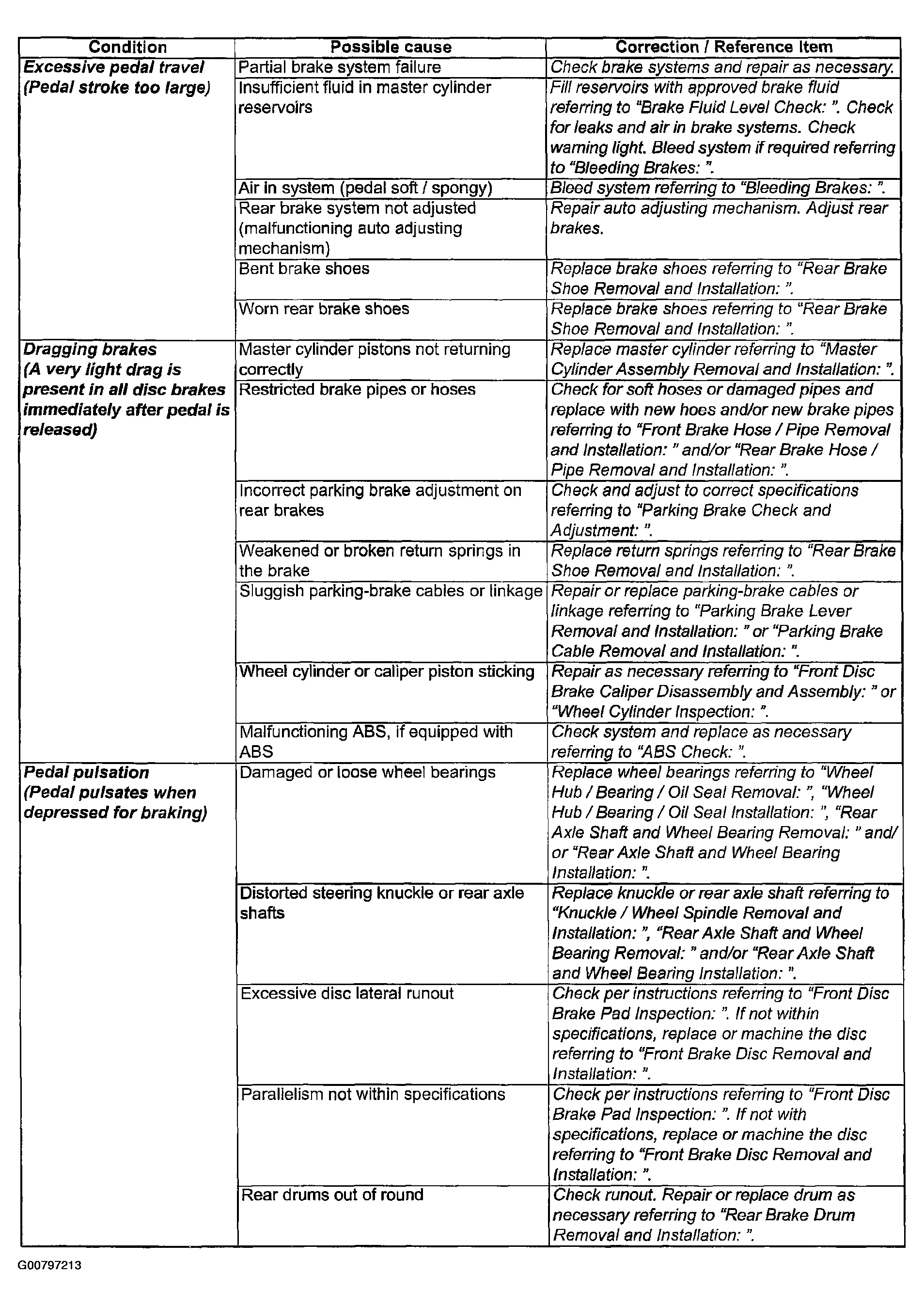

Fig 2: Brake Trouble Symptom Chart (2 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Brake Trouble Symptom Chart (3 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Brake Trouble Symptom Chart (4 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.
