Differential Side Bearing

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Press-fit side bearing (1) with special tool and press.
Special tool

(A): 09944-66020

Fig 1: Press-Fitting Side Bearing With Special Tool & Press
Courtesy of SUZUKI OF AMERICA CORP.
Hold bearing press-fitted in Step 1 with holder and press-fit side bearing on the other side.
NOTE: Be sure to use bearing holder for the purpose of protecting lower bearing.

Special tool

(A): 09944-66020

(B): 09951-16060

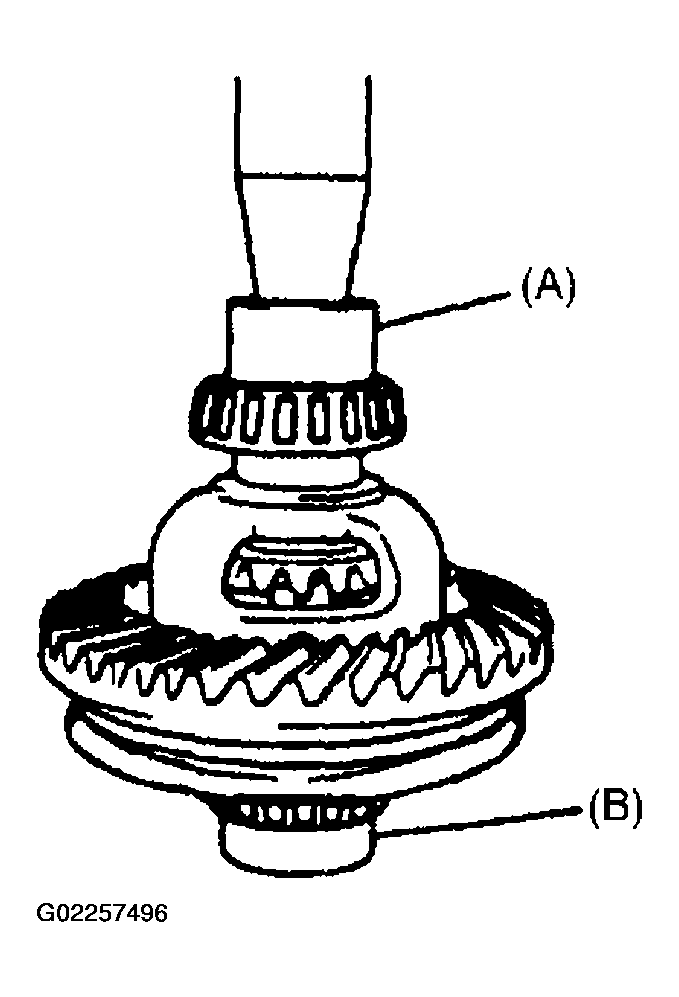

Fig 2: Holding Bearing Press-Fitted With Holder & Press-Fit Side Bearing On Other Side
Courtesy of SUZUKI OF AMERICA CORP.
