Rear Differential Components

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

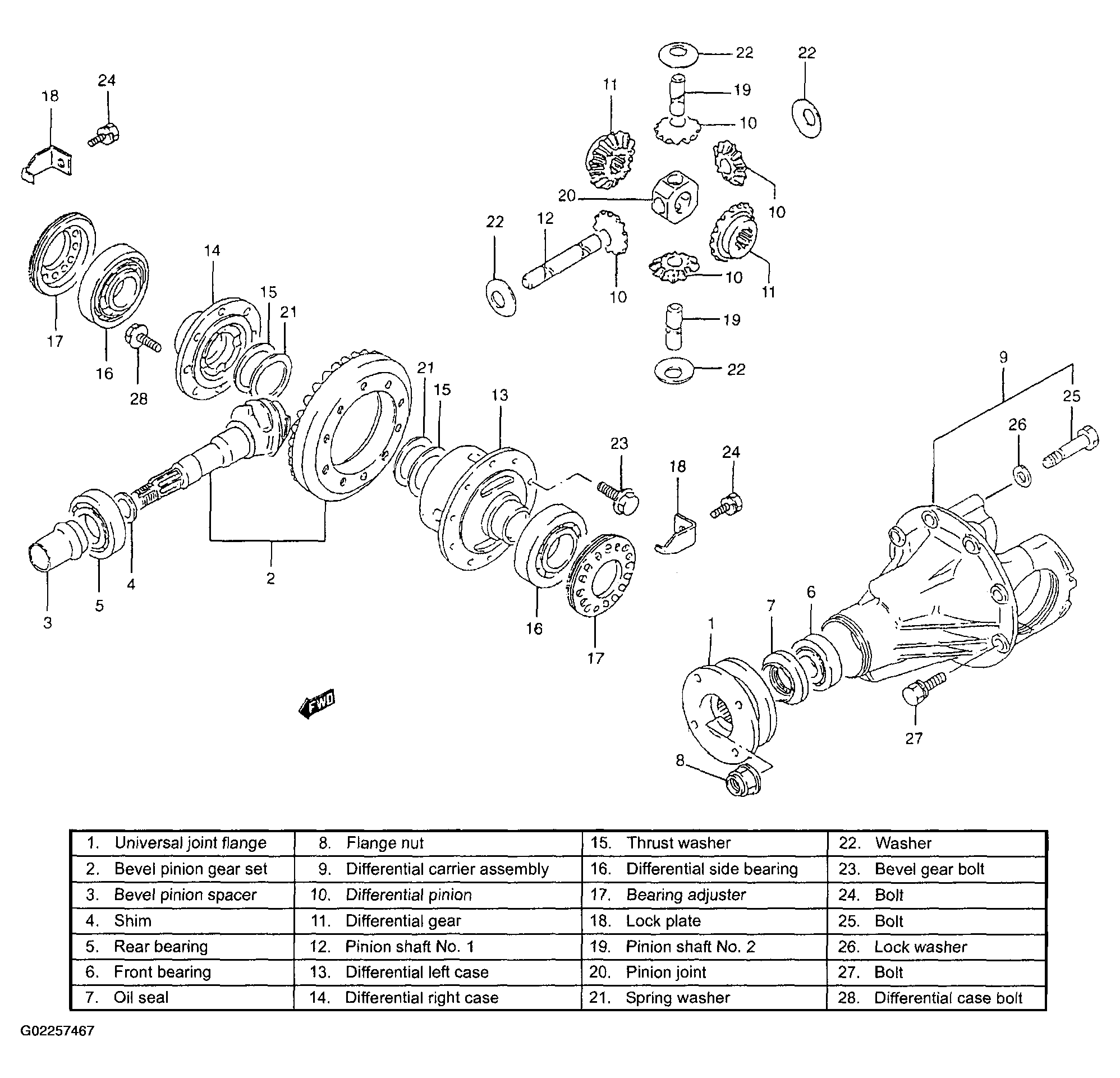

Fig 1: Exploded View Of Rear Differential Components
G02257467Courtesy of SUZUKI OF AMERICA CORP.
