Noise Suppressor Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect coupler of noise suppressor (1).
  2. Remove noise suppressor (1).

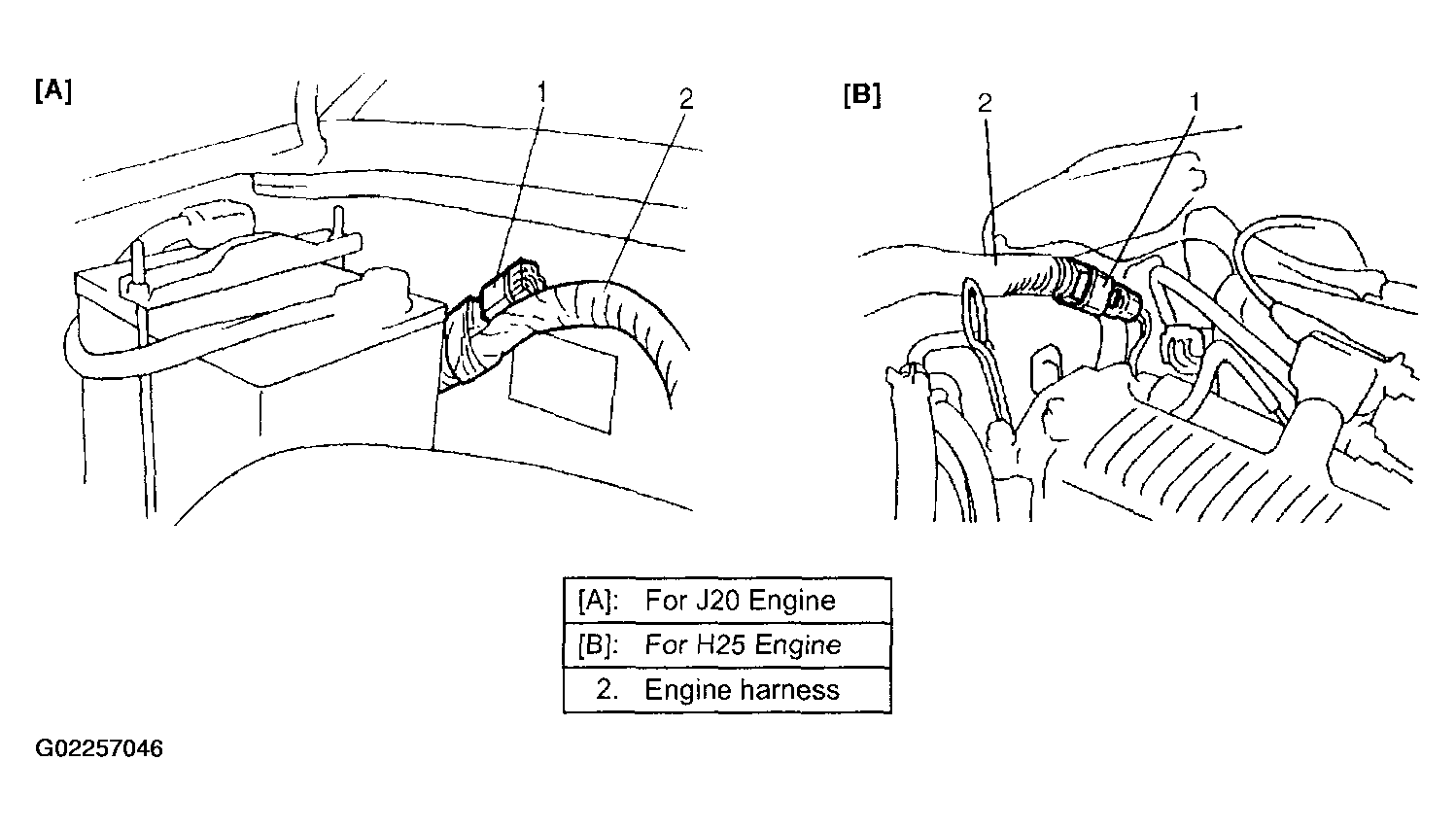

    Fig 1: Removing Noise Suppressor
    G02257046Courtesy of SUZUKI OF AMERICA CORP.
