Cooling Fan and Fan Clutch Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative cable at battery.
Drain coolant system by loosening drain plug (1) of radiator.

Fig 1: Loosening Drain Plug Of Radiator
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect radiator inlet hose from radiator.
Loosen cooling fan / clutch nuts.
Remove P/S oil tank stay bolts (1) from radiator stay.

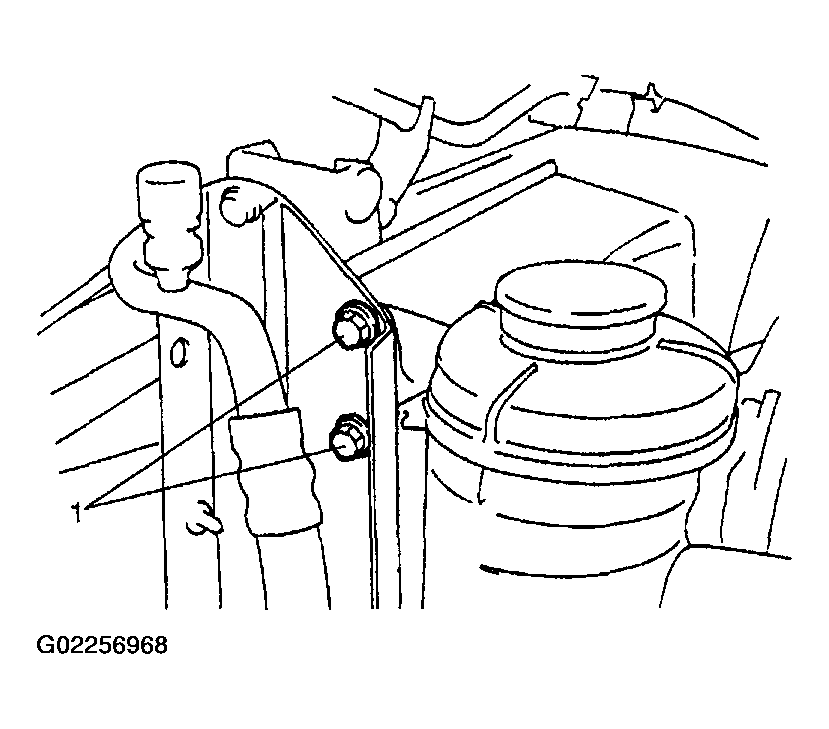

Fig 2: Removing P/S Oil Tank Stay Bolts From Radiator Stay
Courtesy of SUZUKI OF AMERICA CORP.
Remove radiator shroud securing clips.
Then remove cooling fan / clutch and radiator shroud.
