Oil Pan and Oil Pump Strainer Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Install new O-ring (1) to lower crankcase as shown in figure.
Install two new O-rings to oil pump strainer.

Fig 1: Installing New O-Rings To Oil Pump Strainer
Courtesy of SUZUKI OF AMERICA CORP.
Install oil pan baffle plate to upper oil pan.
Tighten oil pan baffle plate bolts to specified torque.

Tightening torque

Oil pan baffle plate bolt: 11 N.m (1.1 kg-m, 8.0 lb-ft)
Apply sealant "A" to upper oil pan (1) sealing surface area as shown in figure.
"A": Water tight sealant 99000-31250

Fig 2: Applying Sealant To Upper Oil Pan Sealing Surface Area
Courtesy of SUZUKI OF AMERICA CORP.
Place the upper oil pan (1) on the cross member and suspension member (just beneath the lower crankcase). At this point install oil pump strainer.
Tightening torque

Oil pump strainer bolt (a): 11 N.m (1.1 kg-m, 8.0 lb-ft)

Fig 3: Tightening Oil Pump Strainer Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Install upper oil pan (1) to lower crankcase as follows.
1. Fit upper oil pan (1) to cylinder block.
2. Tighten upper oil pan bolts and nuts temporarily by hand.
3. Tighten upper oil pan bolts and nuts to specified torque by numerical order as shown in Fig 4 .
  Tightening torque

  Upper oil pan bolt (a): Tighten 11 N.m (1.1 kg-m, 8.0 lb-ft) by the specified procedure

  Upper oil pan bolt (b): Tighten 27 N.m (2.7 kg-m, 19.5 lb-ft) by the specified procedure

  Upper oil pan nut (c): Tighten 11 N.m (1.1 kg-m, 8.0 lb-ft) by the specified procedure
Fig 4: Tightening Upper Oil Pan Bolts & Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Install bracket (3) to oil pump strainer (2) and upper oil pan (1).
Tightening torque

Oil pump strainer bracket bolt (d): 11 N.m (1.1 kg-m, 8.0 lb-ft)

Fig 5: Installing Bracket To Oil Pump Strainer & Upper Oil Pan
Courtesy of SUZUKI OF AMERICA CORP.
Apply sealant "A" to lower oil pan sealing surface area as shown in figure.
"A": Water tight sealant 99000-31250
Install lower oil pan to upper oil pan as follows.
1. Fit lower oil pan (1) to upper oil pan.
2. Tighten lower oil pan bolts and nuts temporarily by hand.
3. Tighten lower oil pan bolts and nuts to specified torque by numerical order as shown in Fig 6 .
  Tightening torque

  Lower oil pan bolt (e): Tighten 11 N.m (1.1 kg-m, 8.0 lb-ft) by the specified procedure

  Lower oil pan nut (f): Tighten 11 N.m (1.1 kg-m, 8.0 lb-ft) by the specified procedure

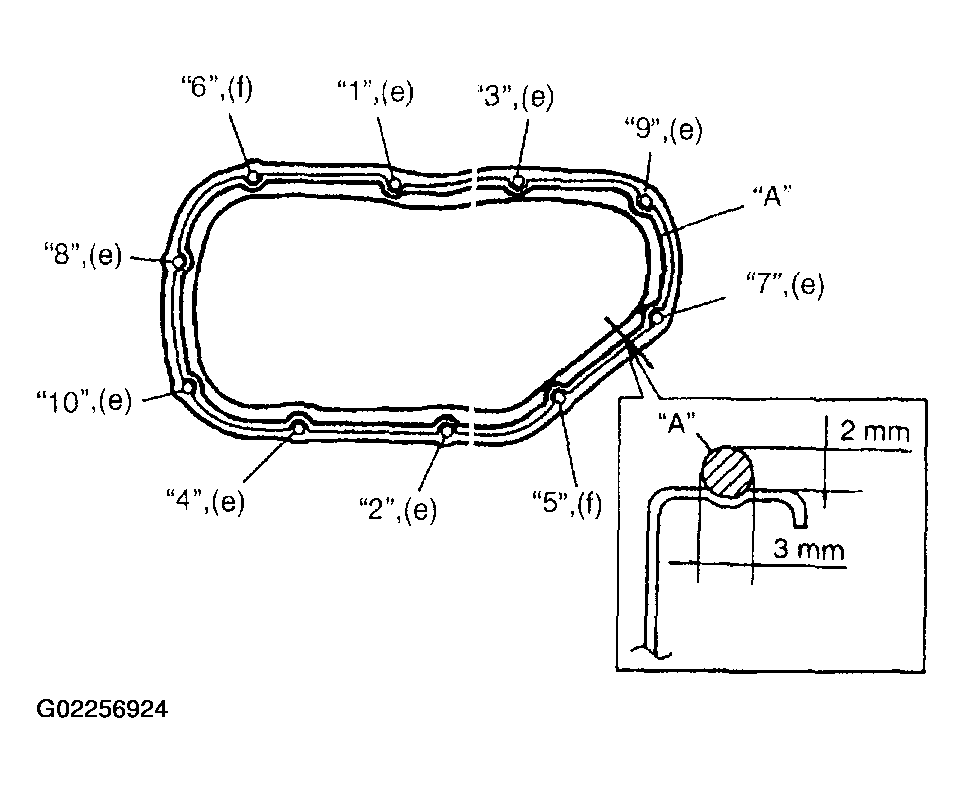

Fig 6: Tightening Lower Oil Pan Bolts & Nuts In Numerical Order
Courtesy of SUZUKI OF AMERICA CORP.
Install new gasket (1) and drain plug (2) to oil pan.
Tightening torque

Engine oil drain plug (f): 50 N.m (5.0 kg-m, 36.5 lb-ft)

Fig 7: Installing New Gasket & Drain Plug To Oil Pan
Courtesy of SUZUKI OF AMERICA CORP.
Attach radiator outlet pipe to upper oil pan.
Install front differential housing according to installation procedure described in "FRONT DIFFERENTIAL DISMOUNTING AND REMOUNTING ".
Install rack and pinion assembly. Refer to "POWER STEERING GEAR BOX ASSEMBLY REMOVAL AND INSTALLATION ".
Refill front differential housing with gear oil if drained, referring to "FRONT DIFFERENTIAL GEAR OIL INSPECTION AND CHANGE ".
Install oil level gauge guide with new O-ring.
Refill engine with engine oil. See appropriate maintenance for engine oil and filter. ".
Check wheel alignment, referring to "WHEEL ALIGNMENT SPECIFICATIONS ".
