Valve stem-to-guide clearance

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

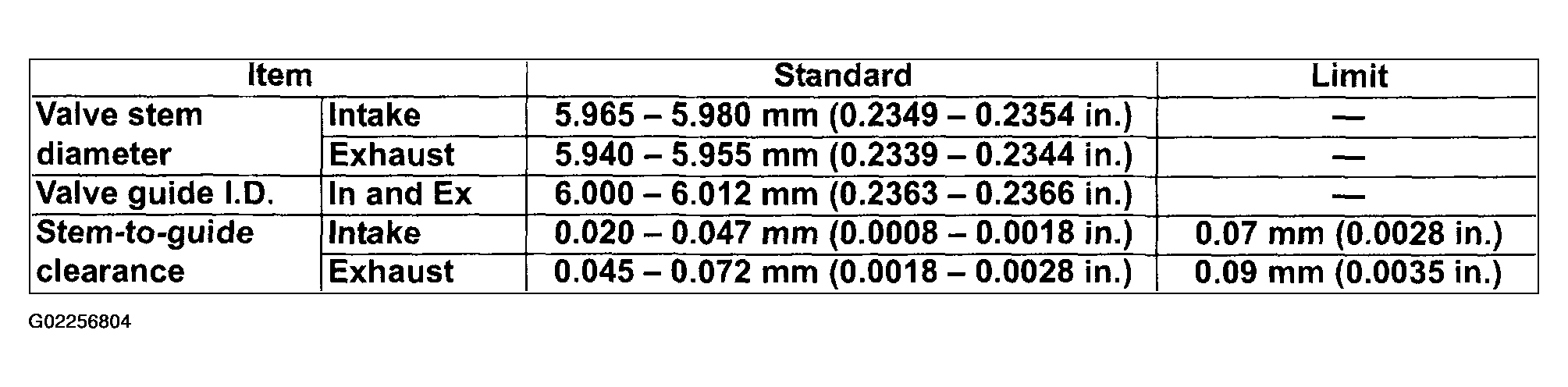

Fig 1: Valve Stem-To-Guide Clearance Specifications Chart
G02256804Courtesy of SUZUKI OF AMERICA CORP.

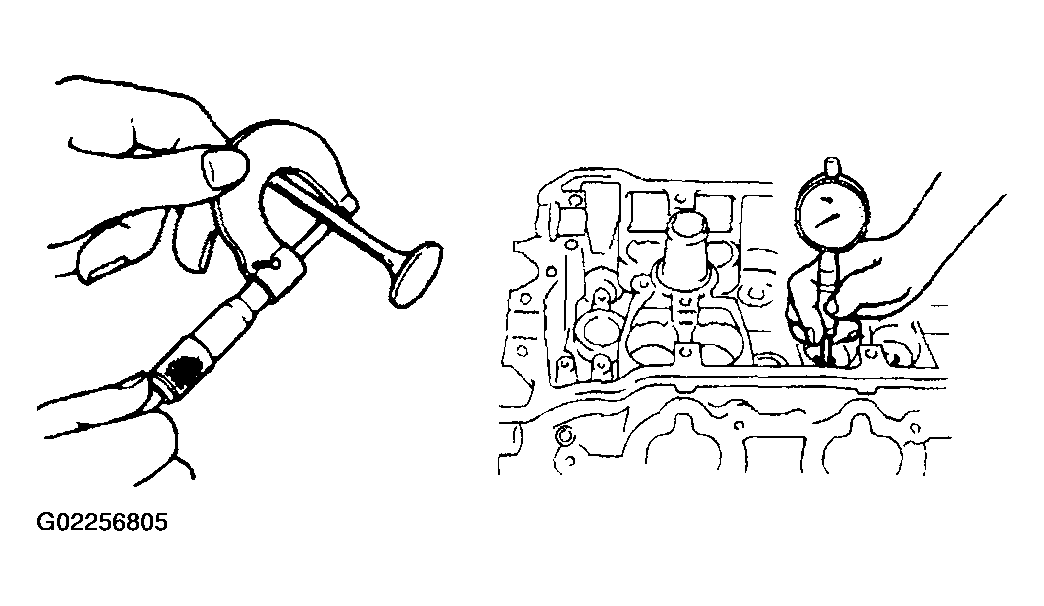

Fig 2: Measuring Valve Stem Diameter
G02256805Courtesy of SUZUKI OF AMERICA CORP.
