Rear Oil Seal

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Carefully inspect oil seal for wear or damage. If lip portion is worn or damaged, replace oil seal.

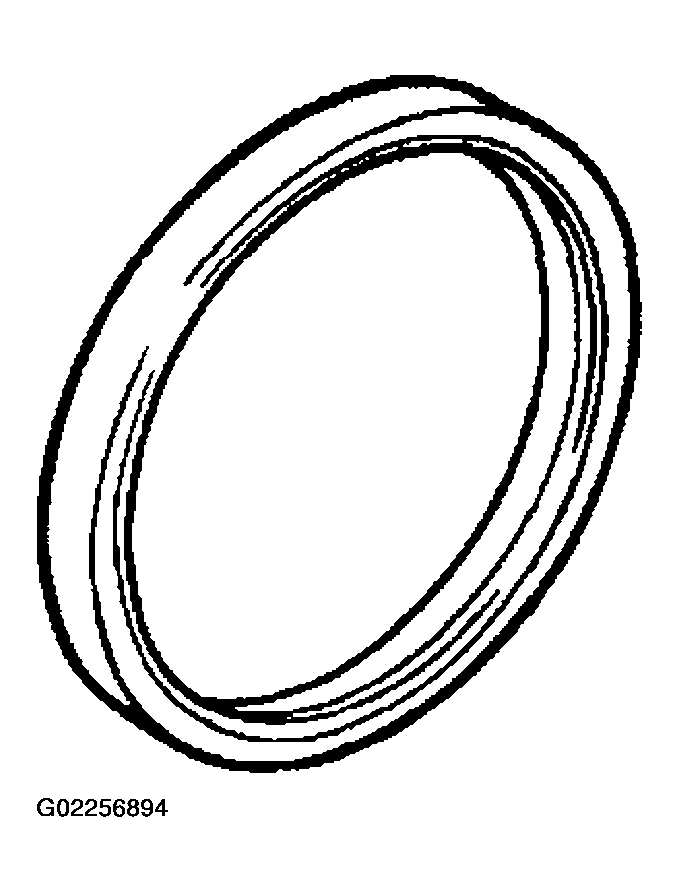

Fig 1: Inspecting Oil Seal For Wear Or Damage
G02256894Courtesy of SUZUKI OF AMERICA CORP.
